Grouts

Tailored Sealing Solutions for Every Challenge

Vortex Companies offers a comprehensive range of grouts, specially formulated in-house to address any sealing challenge. Our grouts are crafted to ensure superior performance and durability, with each product undergoing rigorous third-party testing and approval to meet the highest industry standards.

At Vortex, we understand the critical nature of effective sealing in maintaining the integrity of infrastructure. Whether it’s combating infiltration in underground structures or stabilizing subterranean environments, our grouts provide reliable, lasting solutions. Trust Vortex to deliver the right grout for your specific sealing needs, ensuring enhanced protection and longevity for your projects.

Contact

Maverick Lift

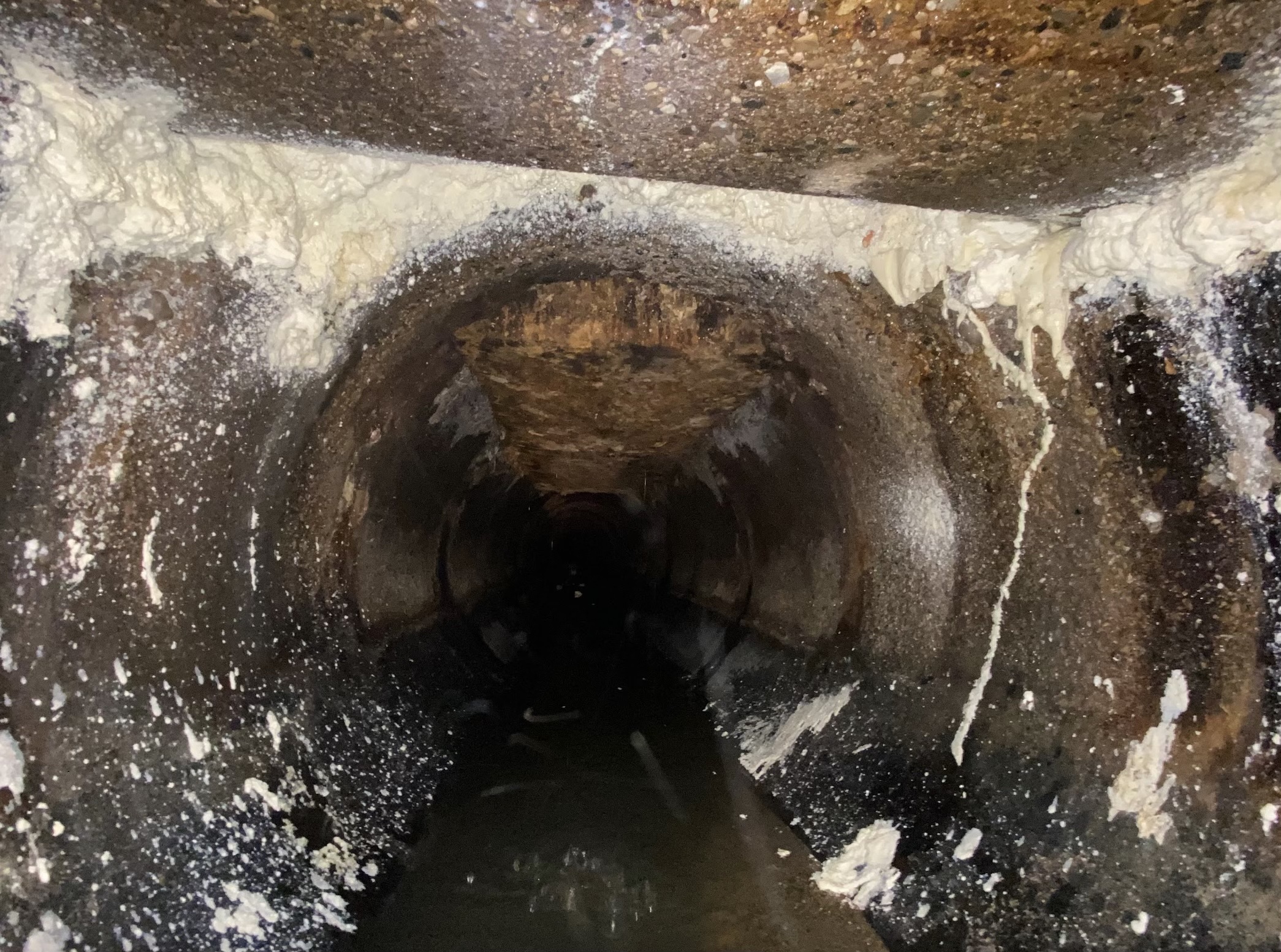

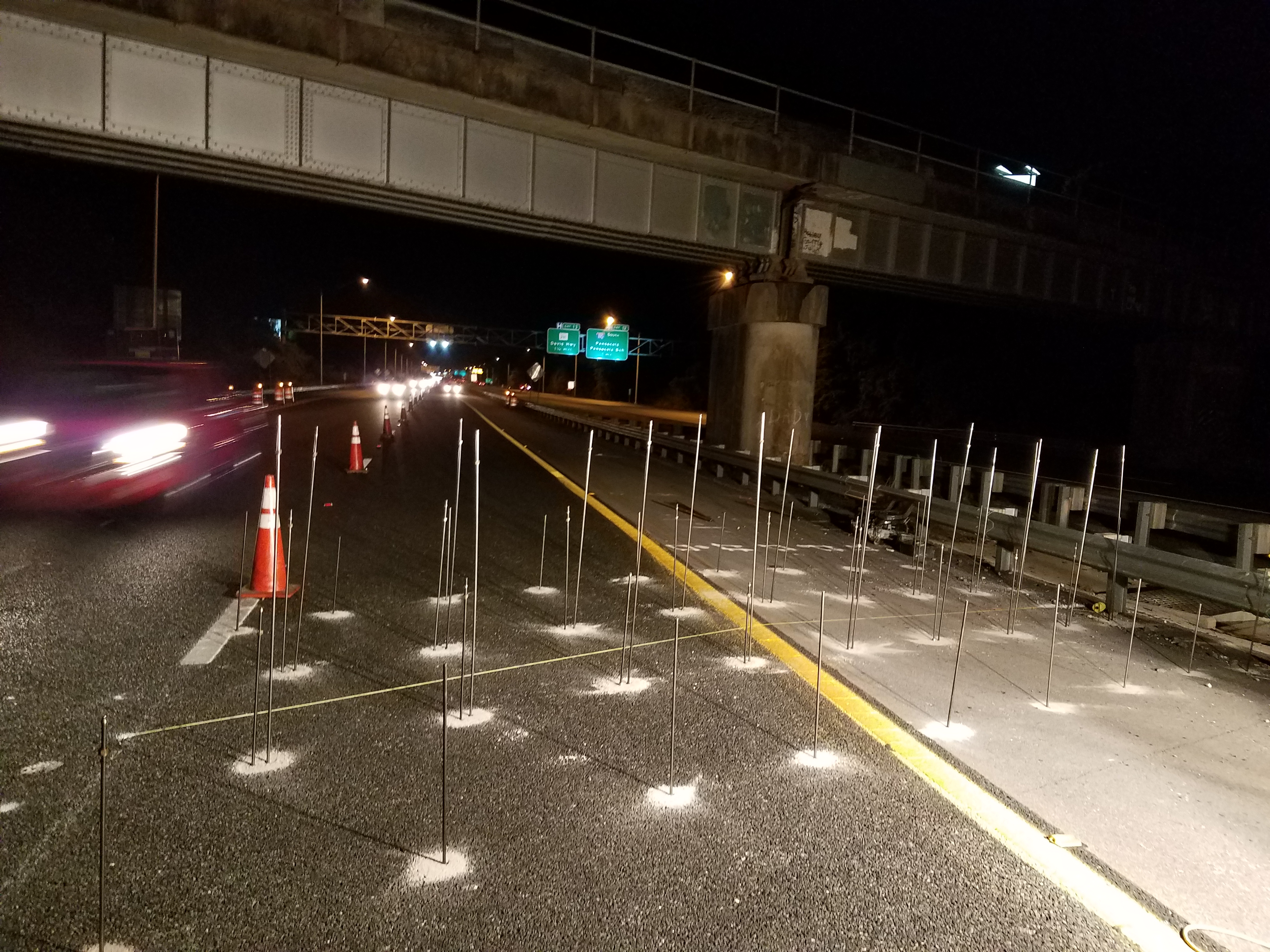

Maverick Lift is a high density, high strength, structural two-part polyurethane grout. This closed cell polyurethane’s low viscosity and hydro insensitive nature allows for permeation filling voids, undersealing concrete, and stabilizing soil while also mitigating inflow and infiltration.

Soil stabilization, releveling concrete slabs, filling voids, sinkhole remediation, and other various types of geotechnical grouting.

Maverick Polyurethane Grout FlyerDownload (796.51 KB)Seawall Line CardDownload (4.23 MB)

Maverick I & I

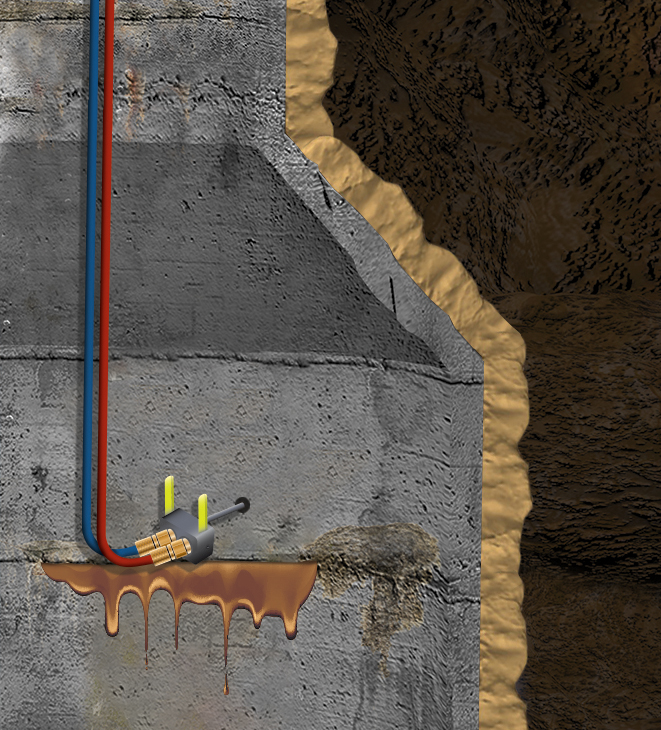

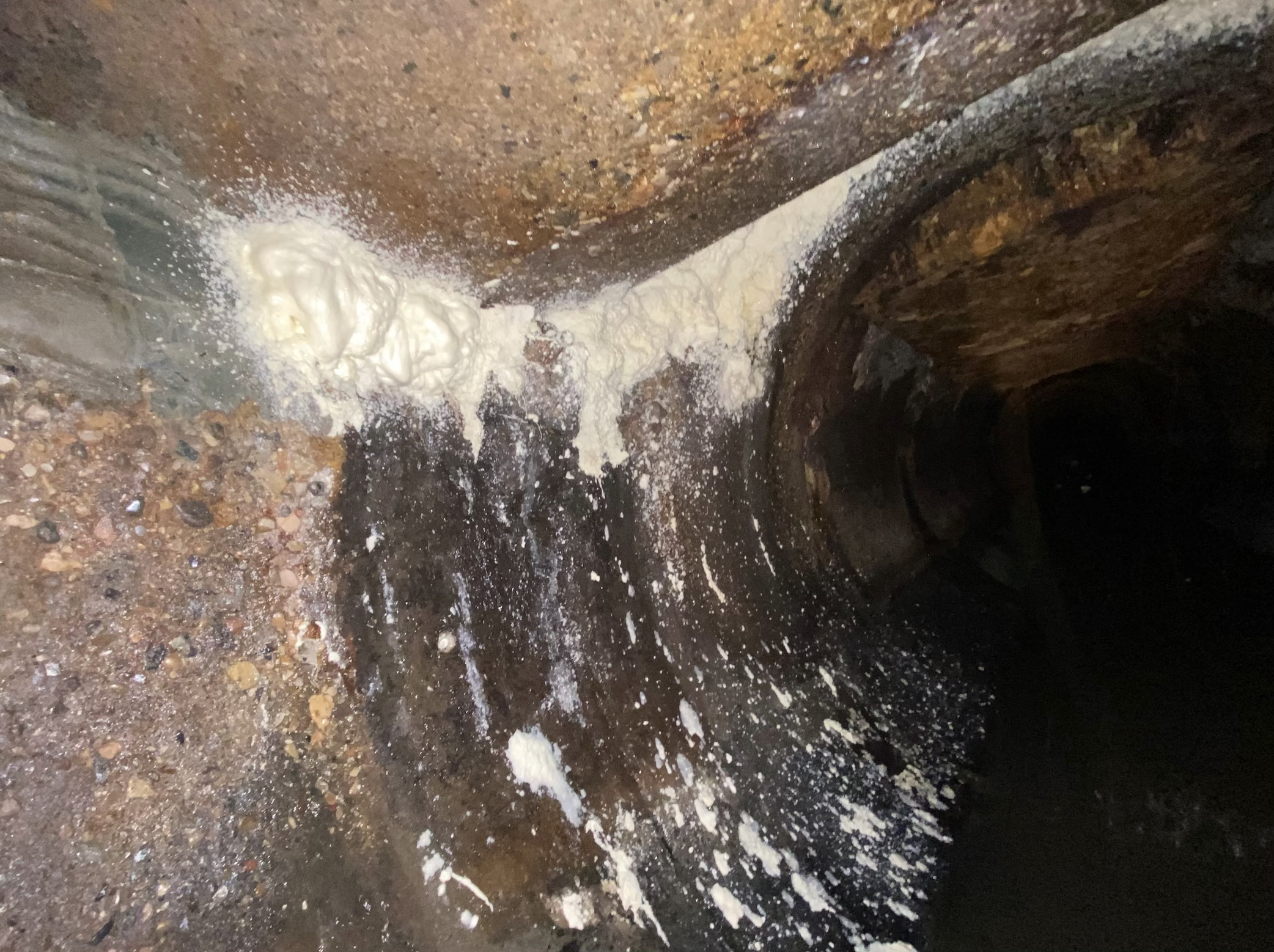

Maverick I & I is a two-part polyurethane grout used to stop high-flow infiltration. It has an easy injection method creating a curtain of grout on the outside of underground structures. Super-fast cure allows for immediate reduction in infiltration. It’s best when used in conjunction with Quadex^® Repair Materials rehab systems.

Stops leaks in manholes, vaults, lift stations, pipelines, etc. Can be used to stop leaks up to 50 gallons per minute. Used primarily to stop high inflow and infiltration.

Maverick Polyurethane Grout FlyerDownload (796.51 KB)

Maverick Stabilization

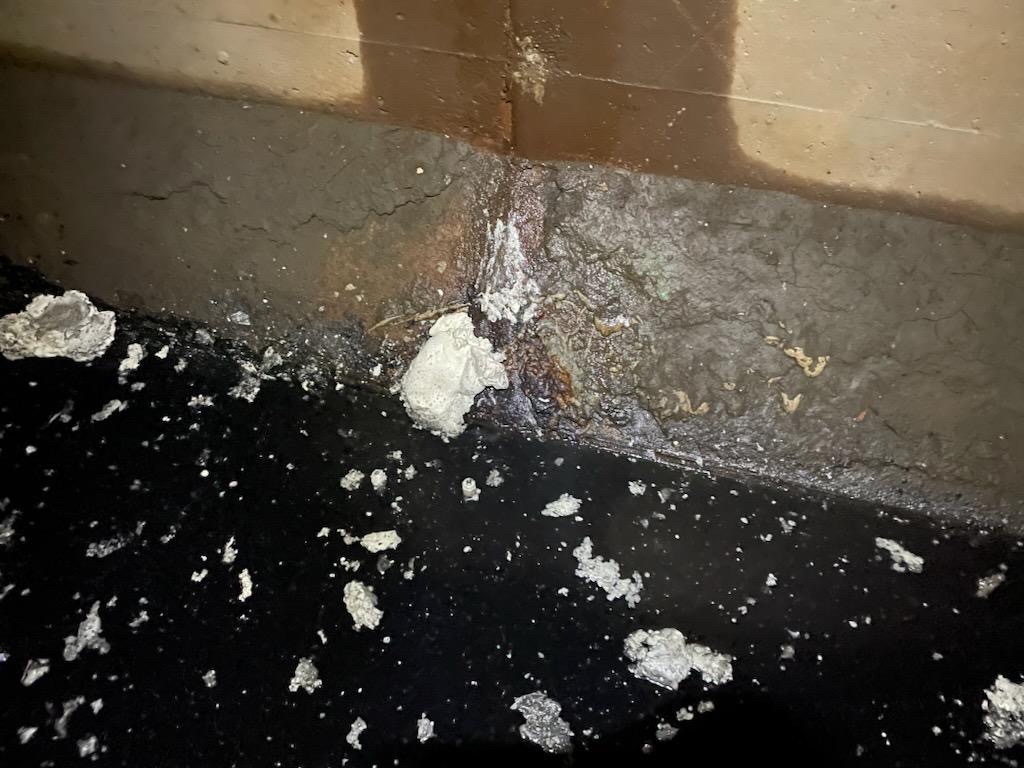

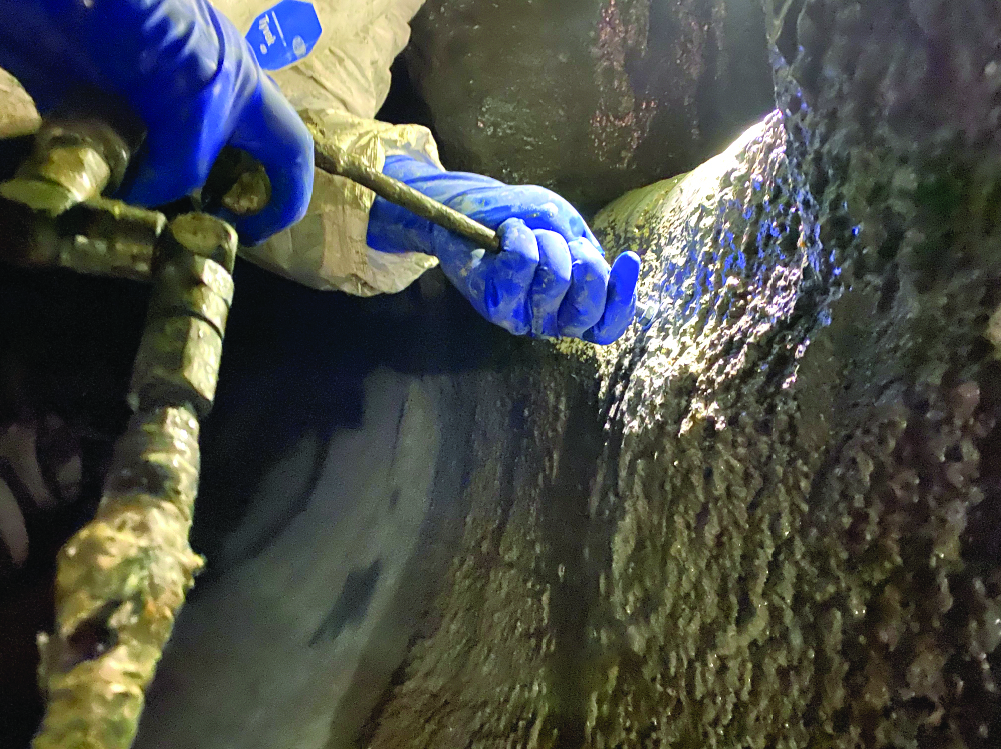

A single component, moisture-activated and MDI/TDI blended polyurethane injection grout designed for sealing persistent water leaks from large cracks or leaking joints in concrete structures. Absorbs up to 12x its weight in water. Foam consistency, 1:1 water ratio. Gel consistency, 10:1 water ratio.

Recommended for active, high-volume water flow, where large cracks, voids or joints in concrete structures, must be sealed. Effective solution to stabilize moving cracks and joints caused by freeze/thaw conditions and other forms of external pressure.

Maverick Polyurethane Grout FlyerDownload (796.51 KB)

Maverick Void Fill

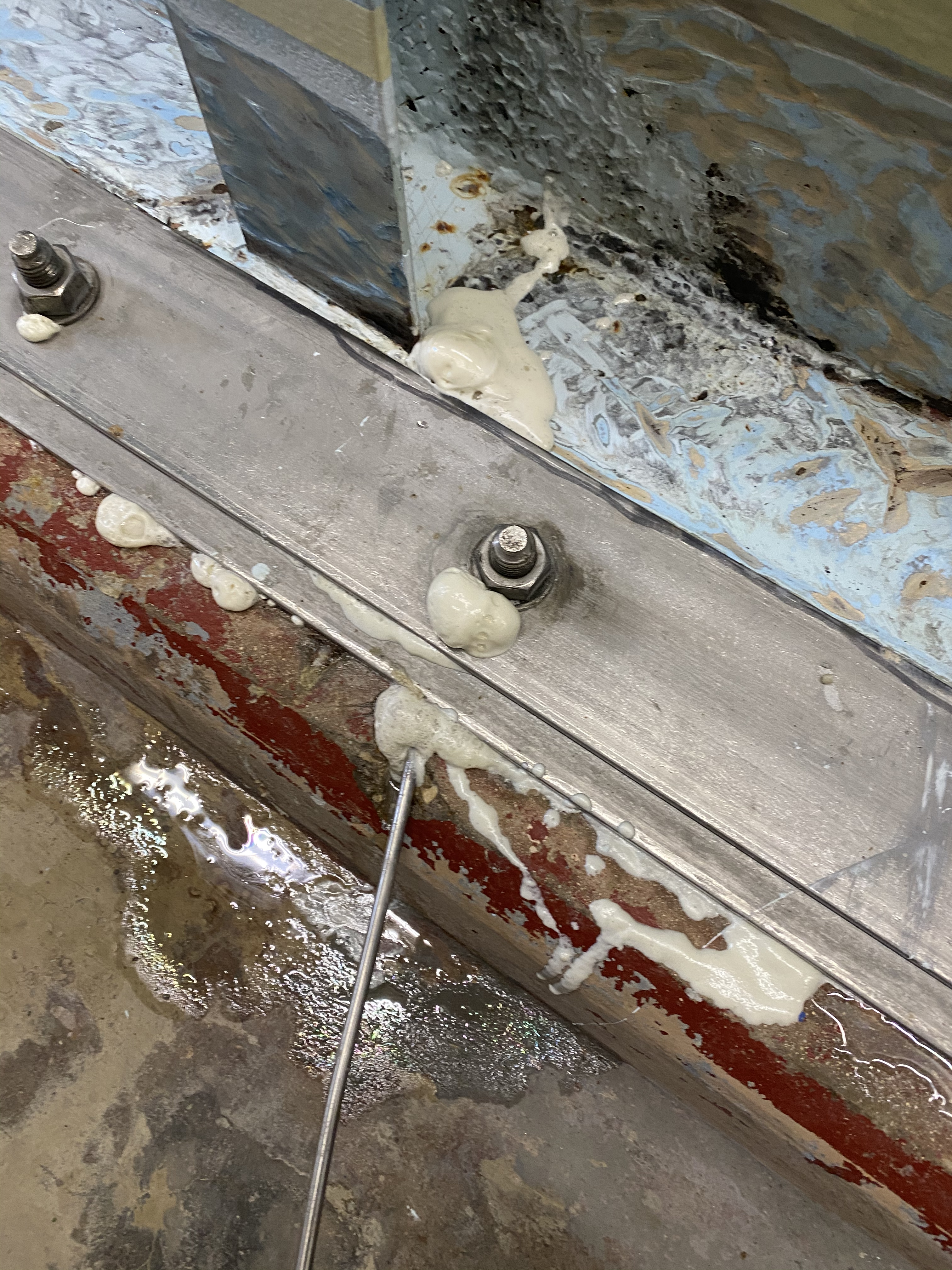

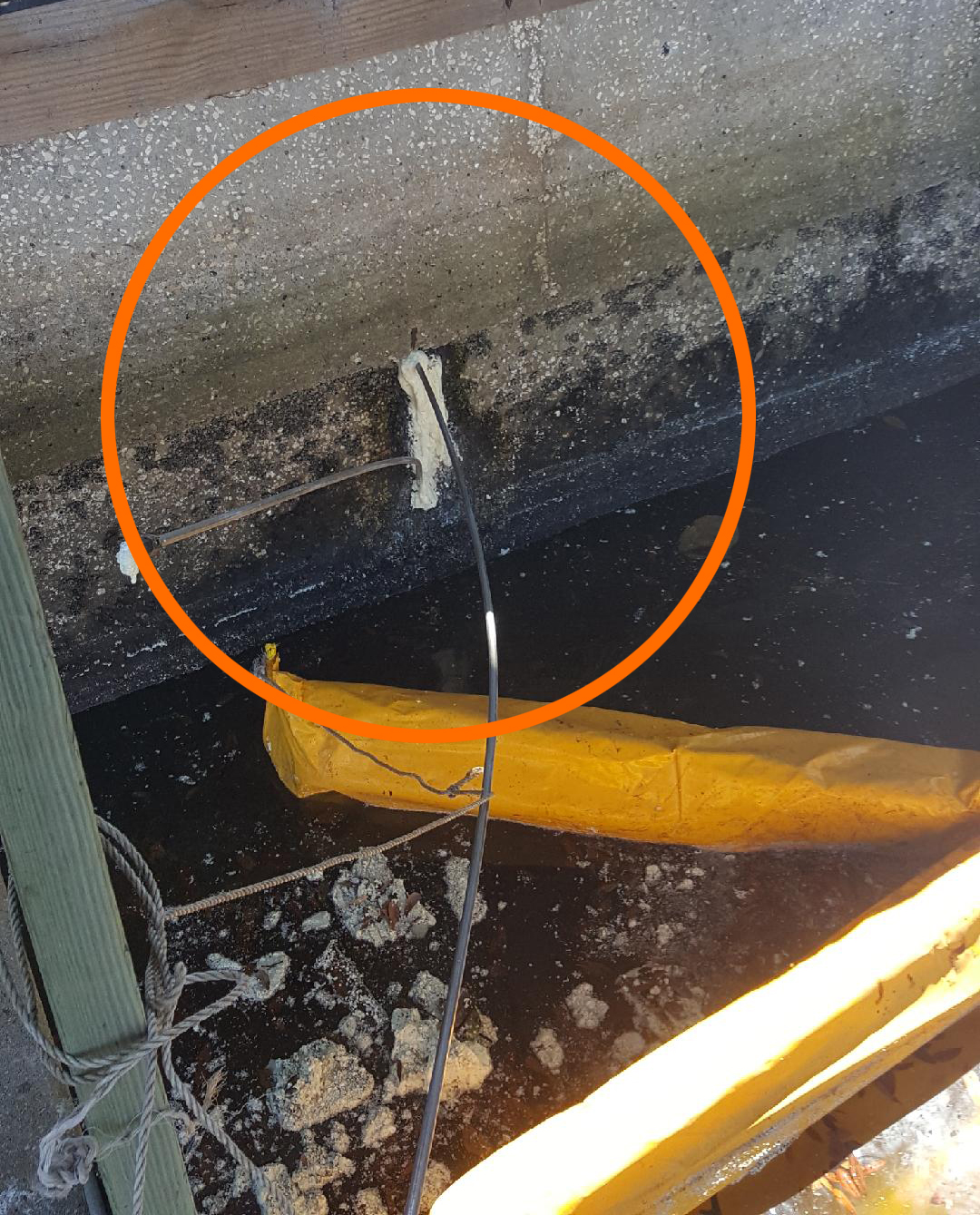

Quadex’s^® Maverick Void Fill (Soil Stabilization Foam) is a low-viscosity, polyurethane injection resin, designed to stabilize soil. When mixed with catalyst and injected, it migrates through loose soil and into below-grade voids. As it comes into contact with moisture in the soil, Maverick Void Fill reacts and expands to form a rigid foam. The foam encapsulates loose soil, fills voids, and forms a solid, watertight barrier.

Voids between walls, floors and ceilings, expansion and barrel joints, cracked concrete, pipe intrusion and annular space.

Maverick Polyurethane Grout FlyerDownload (796.51 KB)

Maverick Acrylamides & Acrylates

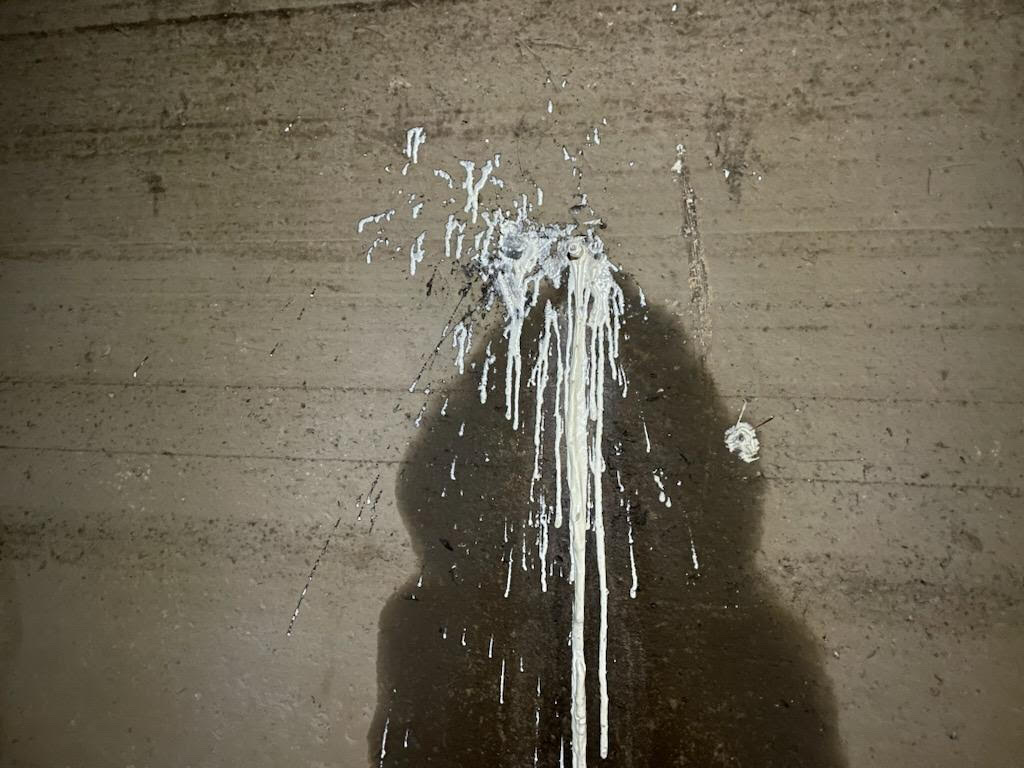

A dry powder that readily dissolves in water to produce a low viscosity grout solution. When the catalyst is added to the grout mixture, its viscosity and soil penetration are similar to water. When injected into soil and cured, it binds the soil particles together and forms a stiff, impermeable gel thereby controlling the flow of groundwater.

Maverick Acrylamides & Acrylates is an excellent choice for infiltration control, sealing of pipeline joints, laterals, manholes, and vaults. It also promotes soil stabilization.

Sealing Leaks: Acrylamide grouts seal leaks in sewer systems by filling cracks and gaps under pressure – creating a watertight seal that prevents groundwater inflow and protects treatment facilities.

Structural Repairs: Restores structural integrity in damaged pipes by bonding with existing material to reinforce weak areas.

Groundwater Control: Creates barriers against groundwater flow in sewers, reducing treatment costs and minimizing the risk of overflows.

Maverick Polyurethane Grout FlyerDownload (796.51 KB)

Parson Quick Plug

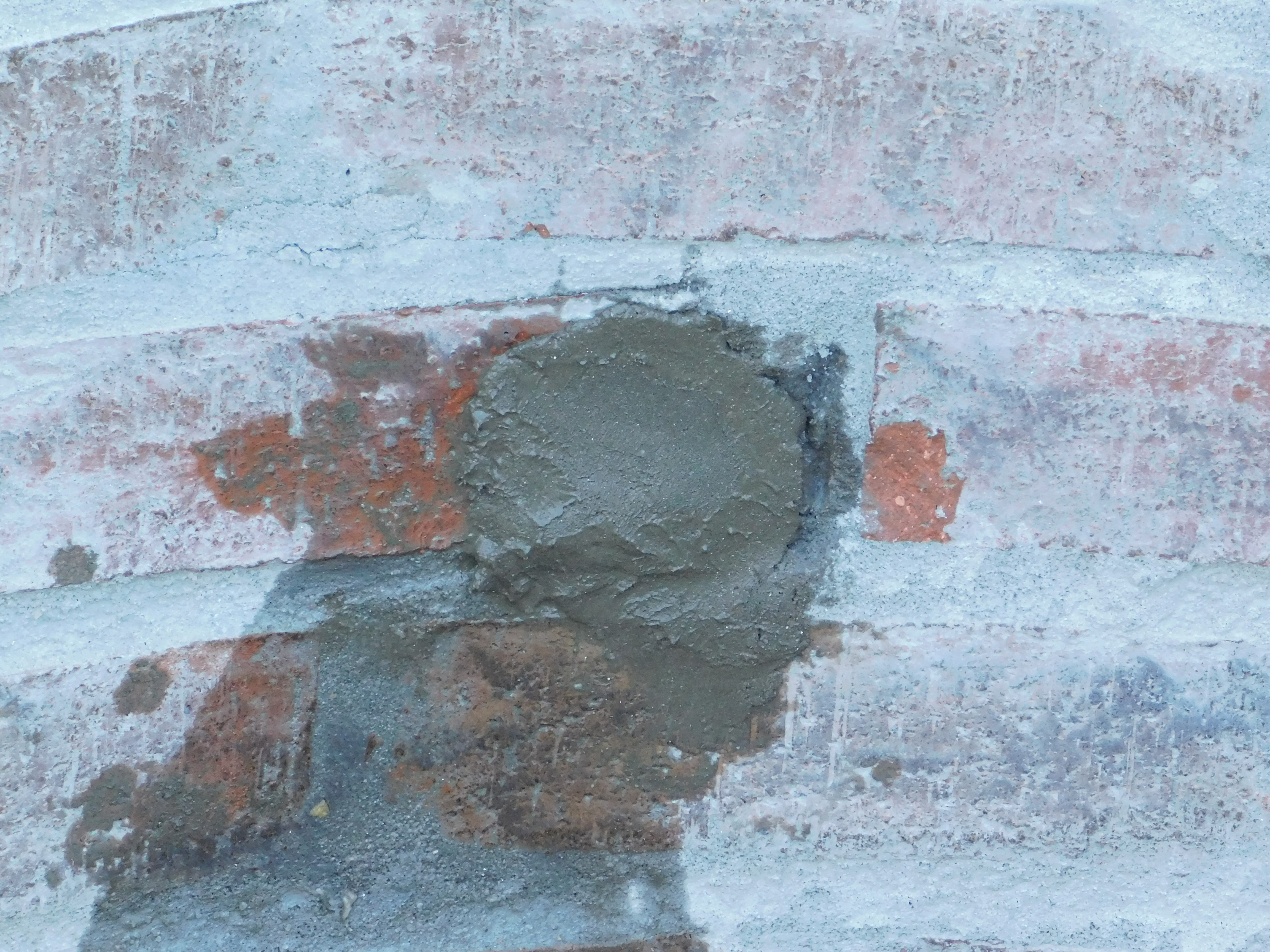

Parson Quick Plug is a hydraulic cement material that is mixed with clean, potable water to produce an extremely rapid setting plug. It is inserted into prepared areas to stop active leaks under low to moderate pressure. Parson Quick Plug may also be used for repairing cracks in concrete. It is ideal for sealing around pipes and conduits. It is non-corrosive and produces extremely high strengths.

Simple to use — just add clean, potable water
Stops leaks in approximately 1 minute
Fills holes and cracks in floors and walls
Excellent freeze-thaw resistance
Nonmetallic
High early strengths

Quick-Plug TDSDownload (83.10 KB)Parson Products Master CatalogDownload (5.84 MB)

Parson Hydro Grout

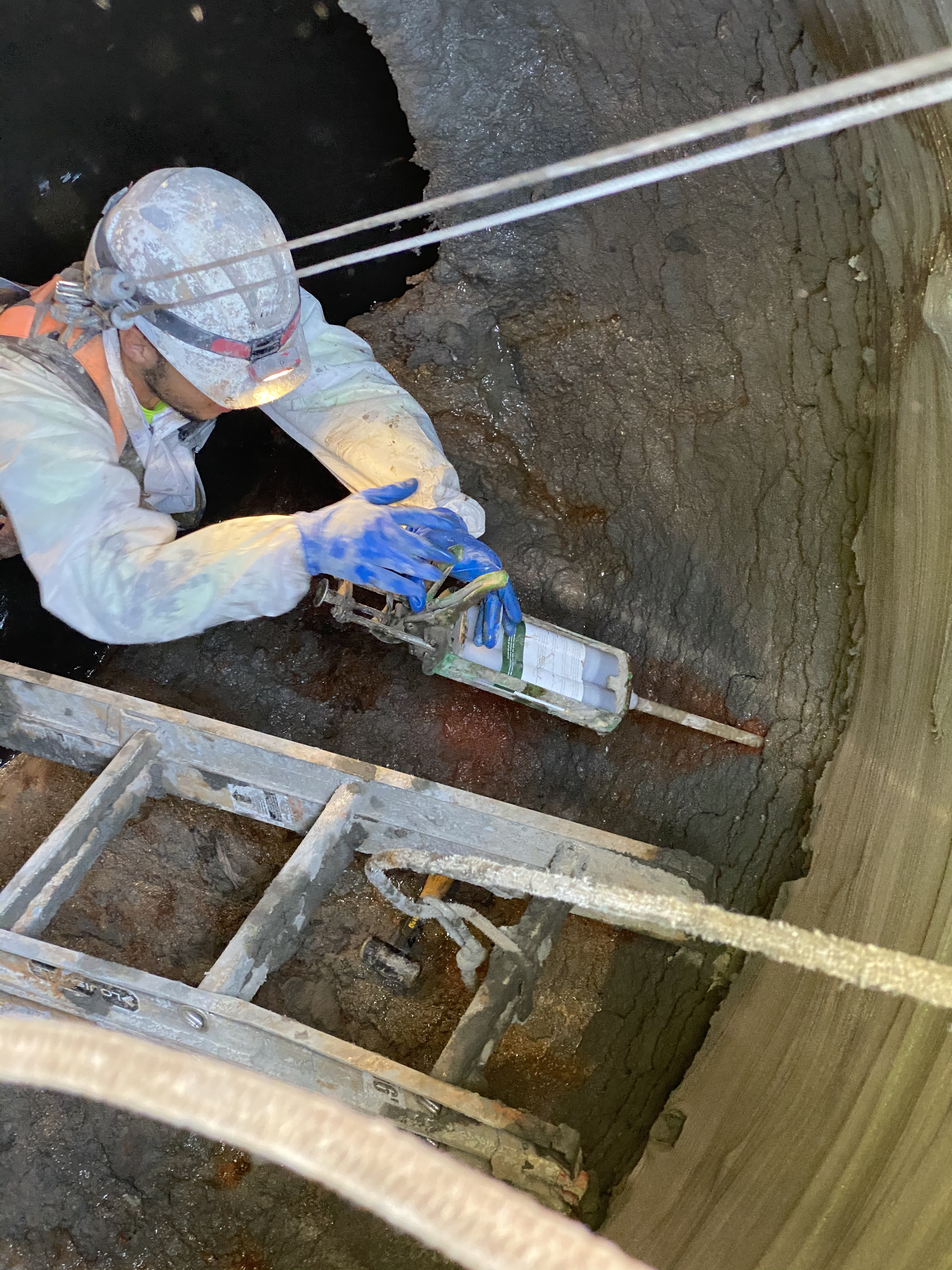

Hydro Grout is a low viscosity, polyurethane injection resin, designed to stabilize soil. When mixed with catalyst and injected, it migrates through loose soil and into belowgrade voids. As it comes into contact with moisture in the soil, Hydro Grout reacts and expands to form a rigid foam. The foam encapsulates loose soil, fills voids, and forms a solid, water-tight barrier.

Contains no solvents
Very low viscosity for good penetration
Cure time controlled by catalyst ratio
Encapsulates and strengthens loose soil
Forms a water-tight barrier to stop water migration
Good resistance to chemicals
Contains no TDI
1200 psi compressive strength (ASTM D1621) in sand

Hydro Grout TDSDownload (546.42 KB)Parson Products Master CatalogDownload (5.84 MB)

Parson Perma Seal

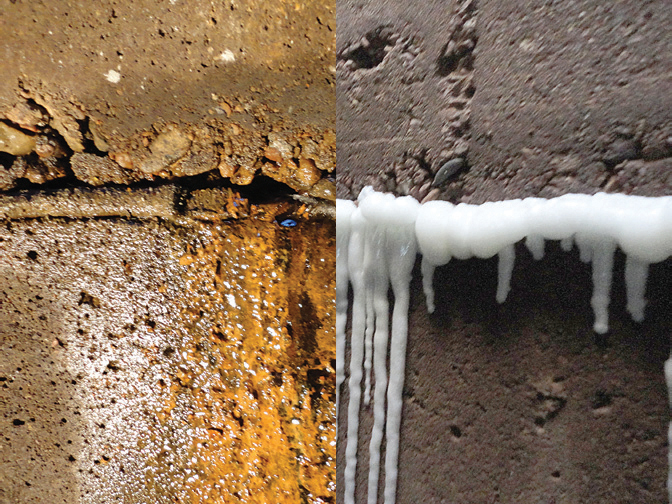

Perma Seal is a single component, pre-catalyzed hydrophobic polyurethane grout that is extremely versatile and used for a variety of infrastructure rehabilitation applications. Its effectiveness and flexibility, making it an ideal solution for leak stoppage and crack sealing. This elastomeric polyurethane grout serves as a infiltration stop and is a viable method of sealing moving and non-moving cracks in concrete structures, slabs, vaults, tanks, and pipes.

100% solids formulation
400% – 600% expansion is typical
Contains non-corrosive properties and no solvents
Outstanding flexural and adhesive properties
Exceptional absorption properties, up to 12x its volume in water
Can be applied under water

Parson Products Master CatalogDownload (5.84 MB)

Parson Seal-Tite

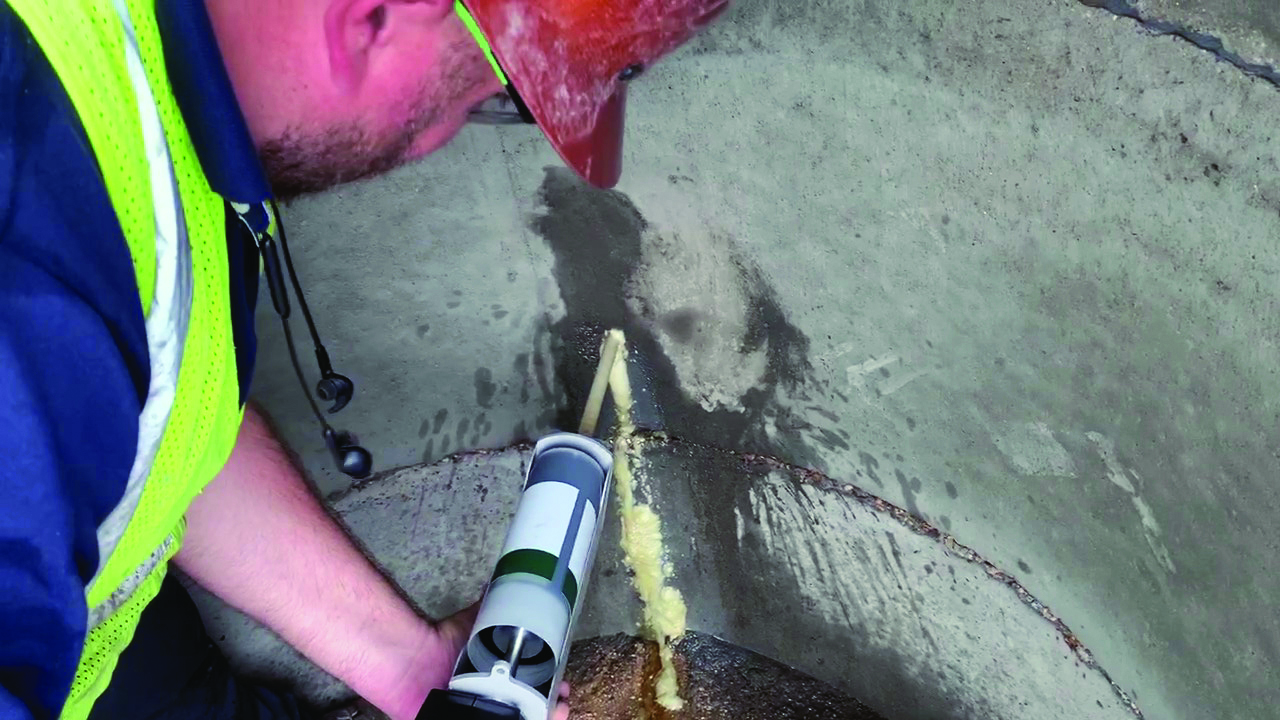

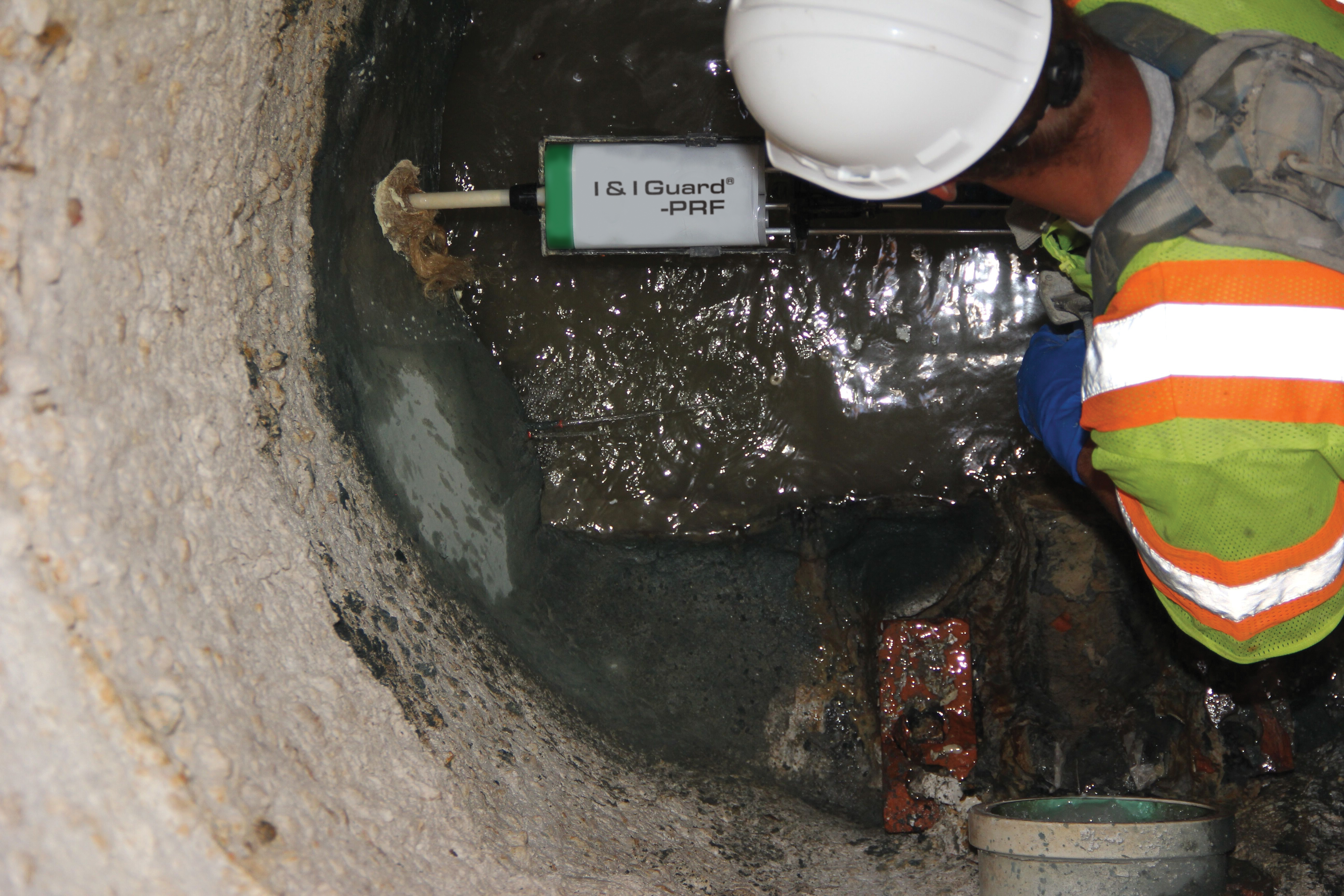

Parson Seal-Tite is a moisture insensitive, two-component, fast-reacting hydrophobic polyurethane grout designed to stop high volume active leaks in manholes, pump stations and other wastewater structures. Parson Seal-Tite is packaged in a dual cartridge with a static mixer and is injected at or near the source of the leak, using a manual dual component caulk gun. The product contains no solvents, CFCs or HFCs.
