Vortex Small Diameter Lining Systems: MaxLiner^® Solutions

At Vortex Companies, we understand that small diameter lining projects require precision, versatility, and efficiency. Our MaxLiner brand leads the industry in providing comprehensive small diameter CIPP (Cured-in-Place Pipe) solutions, ensuring that no matter the complexity of the project — whether it involves lines that transition in size, navigate major bends, or face unique challenges — we have a liner and system to meet those needs.

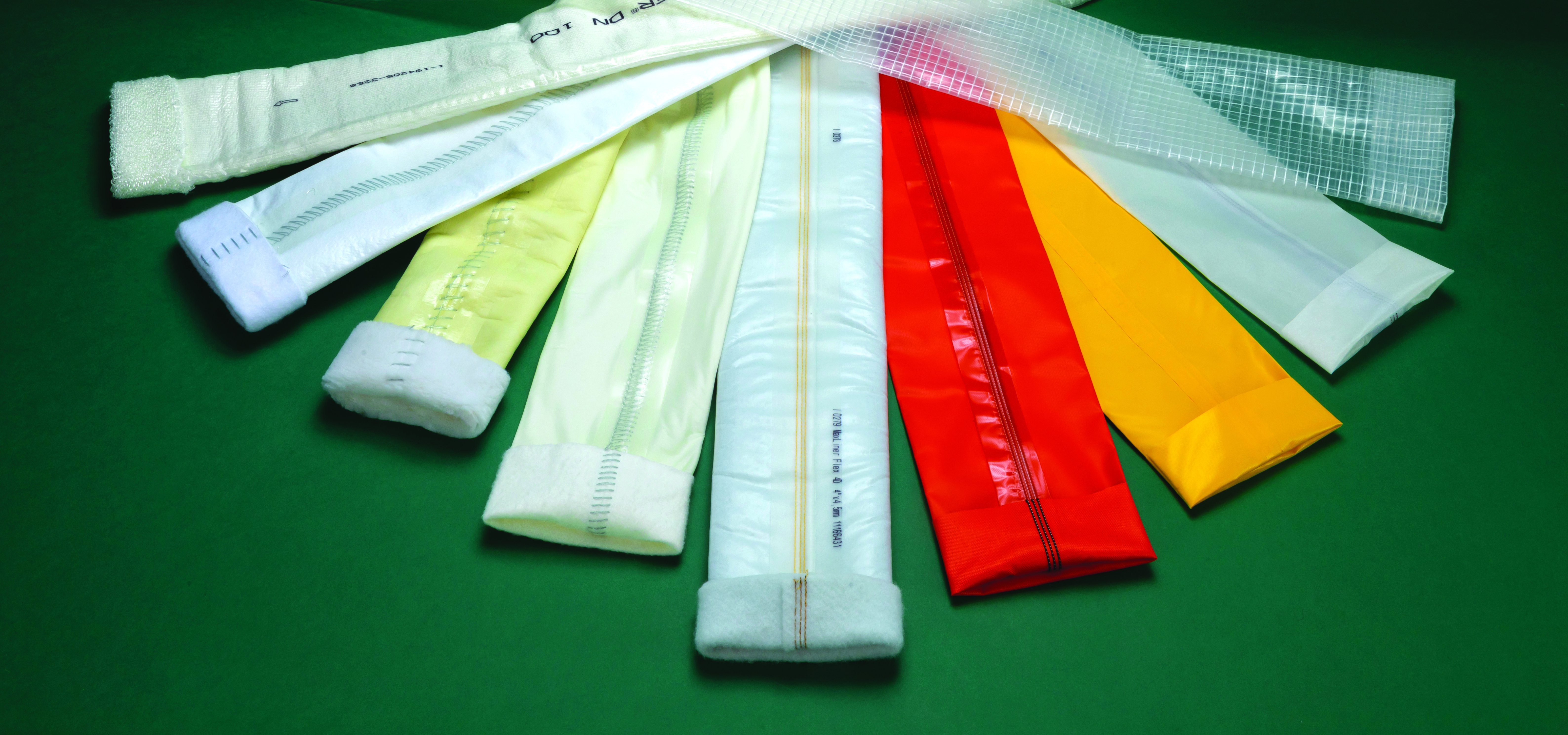

MaxLiner offers a complete range of liners, from our robust Max SCRIM liners for straightforward applications to our ultra-flexible Max WovoGlass™ and Max WovoX® liners, designed for navigating multiple bends and diameter transitions. Coupled with advanced draining, cleaning, and installation equipment, MaxLiner ensures you have everything required for successful project completion.

Contact

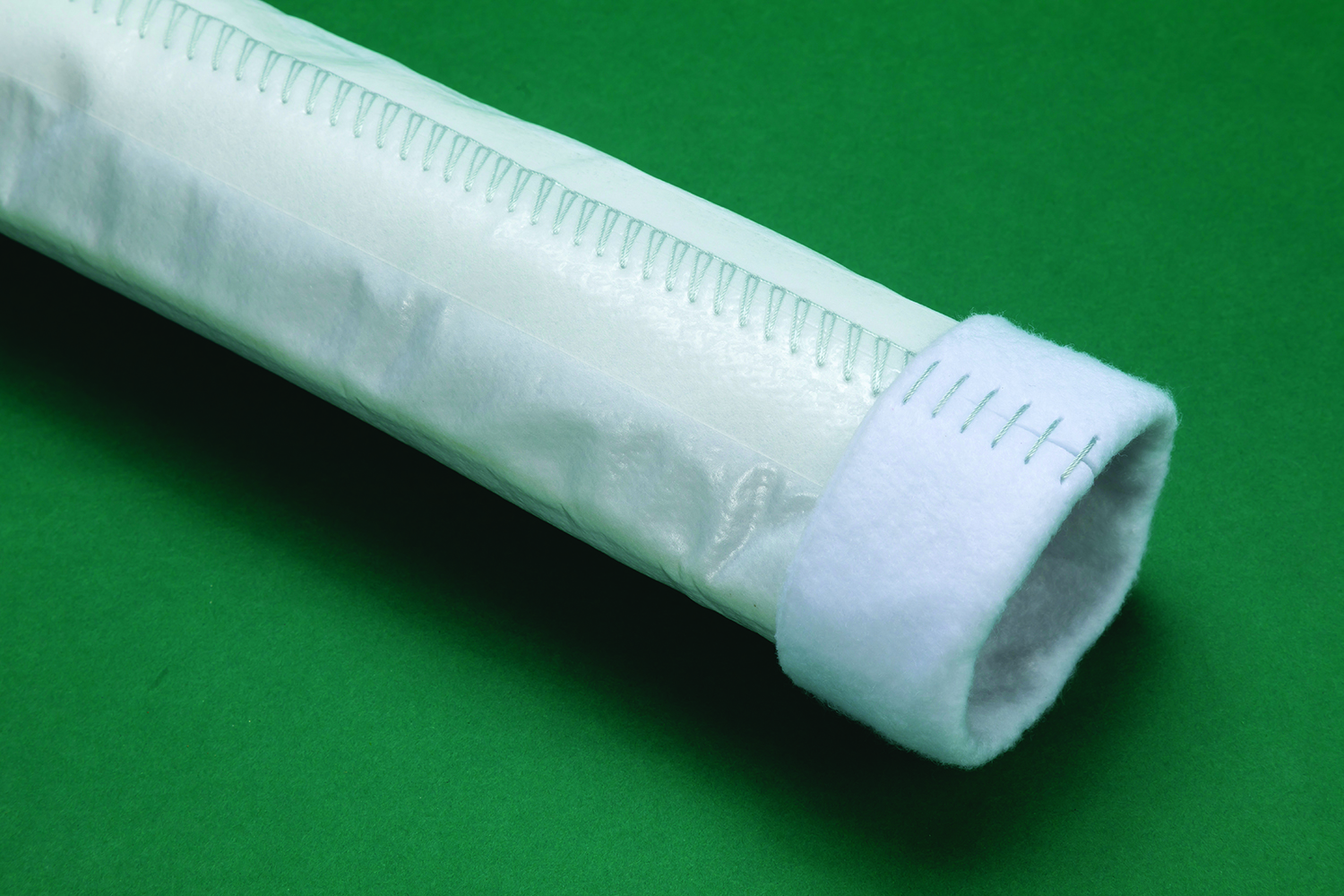

Max SCRIM Liner

Non-woven, needle-punched polyester fiber felt with PU coating. There is a 100% continuous polyester reinforcement filament (SCRIM) integrated into the fabric to limit longitudinal stretch during installation. Ideal for straight shots, can be used around bends up to 45° PVC.

For landing the liner at a definitive point and straight piping applications.
Sweeping bends up to 45°
Open-End (Blindshot) with Calibration Tube
Closed-End
Manufactured transitional liners and custom sizes are available.
PVC Compatible with MaxPox VE

ML Max SCRIM Liner TDSDownload (100.28 KB)

WovoGlass™

An ultra-flexible liner, uniquely bonded to a seamless impermeable PU coating. The circular-knitted construction of polyester and extensible fiberglass reinforcement makes it ideal for transitioning several pipe diameters and lining around multiple bends up to 90°.

Open-End (Blindshot) with Calibration Tube
Close-End
Pull-in-Place
Transitioning sizes/ change in several diameters
Multiple bends up to 90° 3x’s stronger than traditional lateral liners

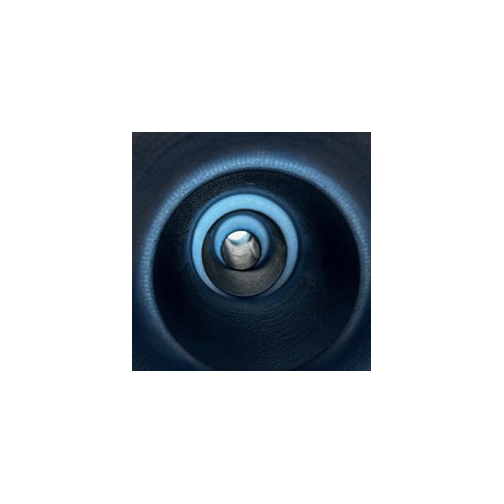

Max WovoX^®

An ultra-flexible, extensible liner bonded to a seamless impermeable PU coating. The circular-knitted construction of polyester and elastomeric yarns make it ideal for transitioning several diameters and lining around multiple bends up to 90°.

Open-End (Blindshot) with Calibration Tube
Close-End
Pull-in-Place
Transitioning sizes / change in several diameters
Multiple bends up to 90°

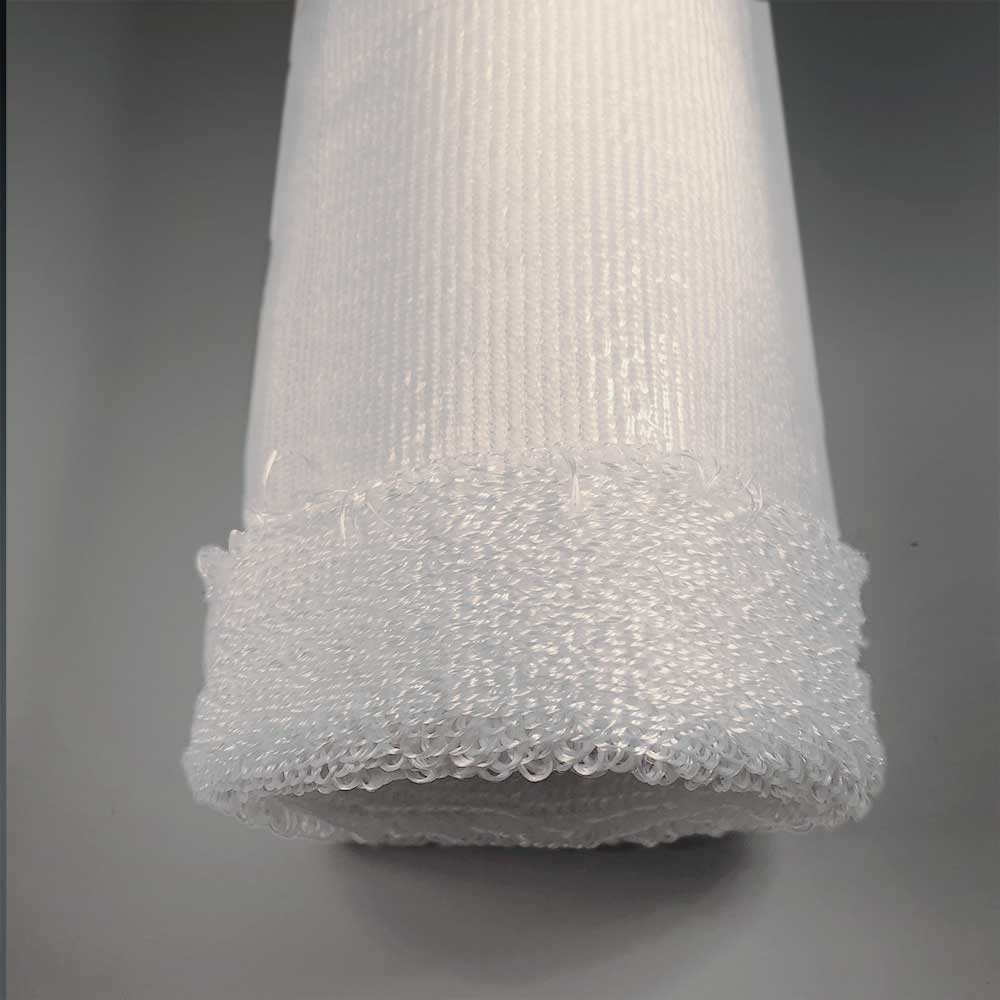

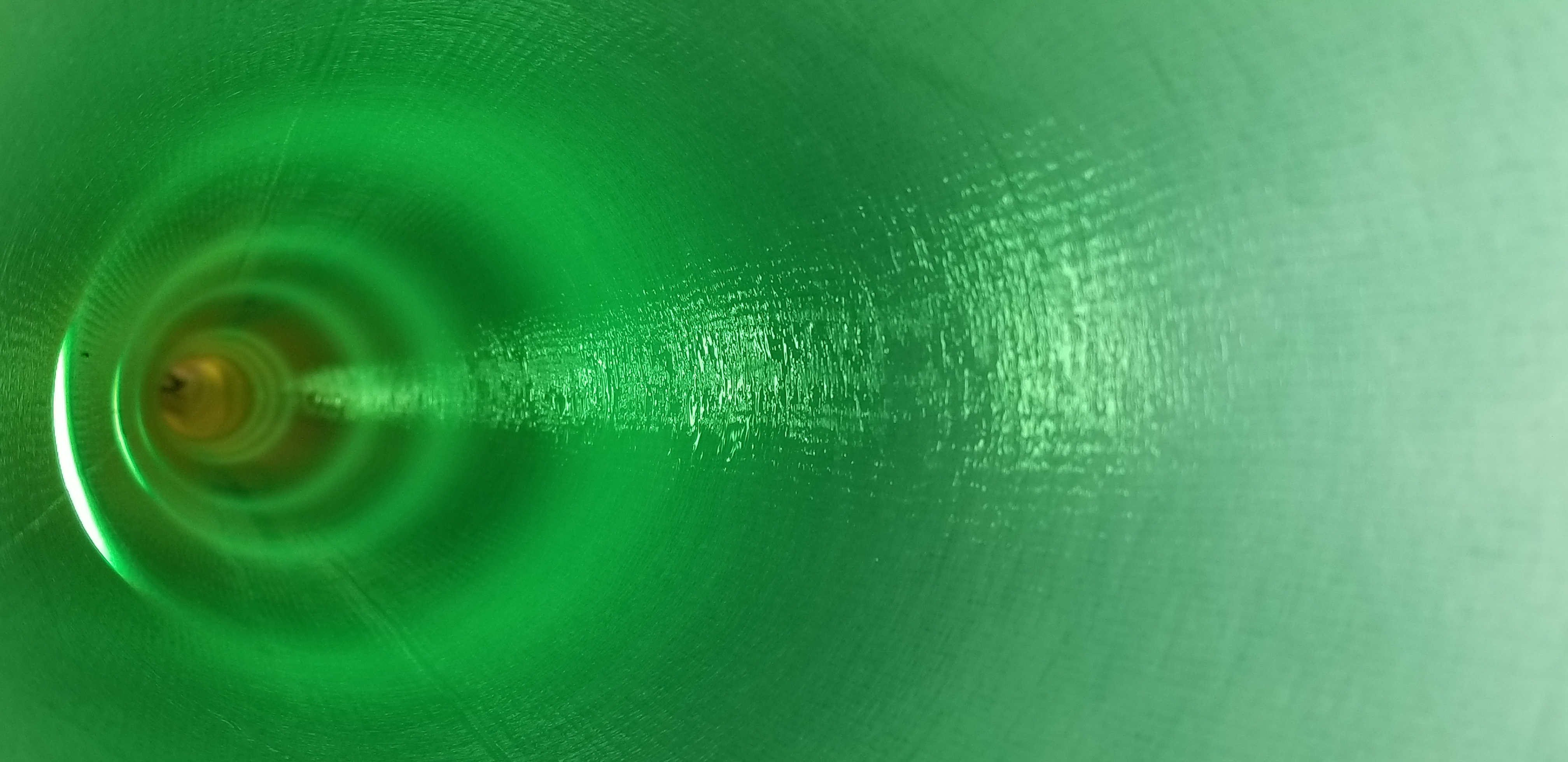

Max WovoLiner^®

An ultra-flexible liner bonded to a seamless impermeable PU coating. The circular-knitted construction of polyester and elastomeric yarns make it ideal for lining around multiple bends up to 90°.

Open-End (Blindshot) with Calibration Tube
Close-End
Pull-in-Place
Multiple bends up to 90°

MaxClear™

MaxClear™ is a uniquely manufactured synthetic fiber felt CIPP liner with a TPU coating specifically designed to maximize LED light-cure capabilities. Tube forming and seam bonding are achieved by an overlocking chain stitched seam with an extruded taped joint creating a superior, high-performance, impermeable liner designed for sweeping bends up to 45° and very minimal stretch. Manufactured in accordance with ISO9001:2015.

Ideal for LED light cure
Open-End (Blindshot) with Calibration Tube & Closed-End
Ideal for straight piping applications with minimal stretch
May be used on sweeping bends up to 45°
Custom diameters and lengths are available
Not compatible with Styrene

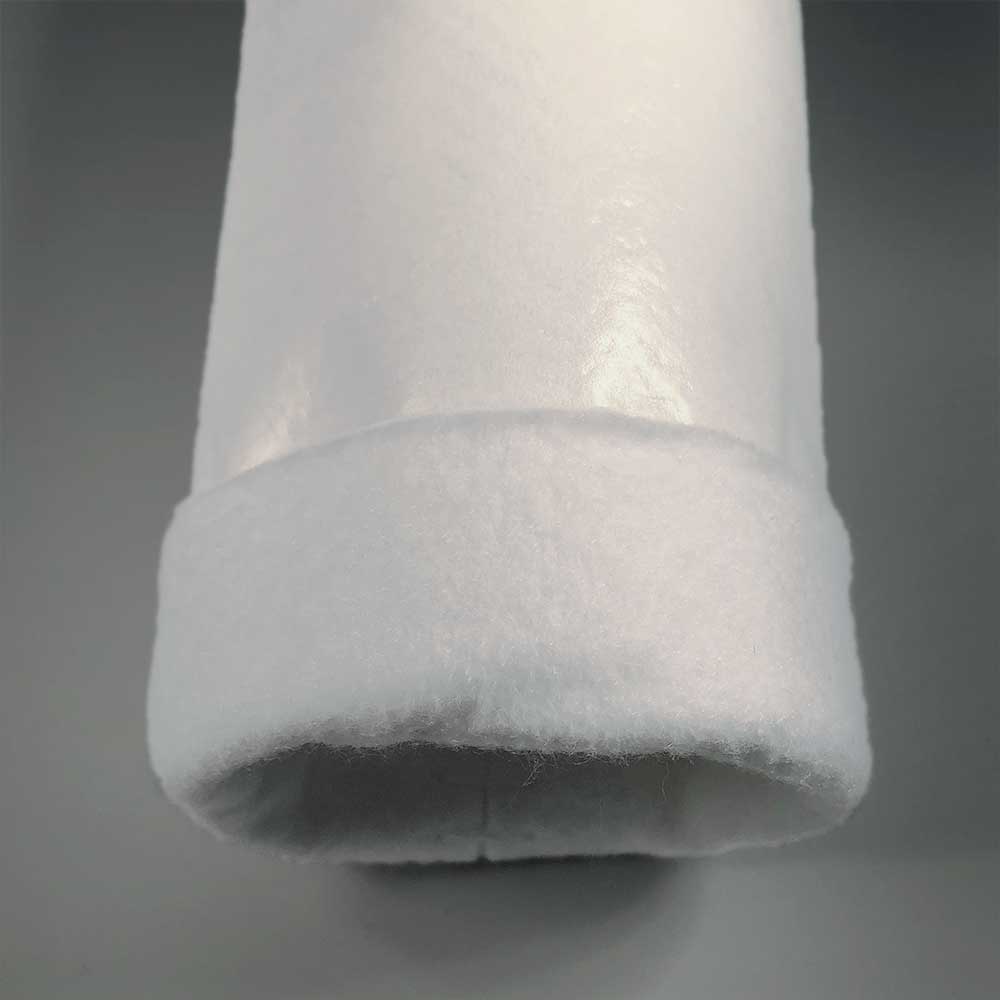

Max LinerTube™

Non-woven, needle-punched polyester fiber felt offered with PU coating designed for sweeping bends and very minimal stretch.

Open-End (Blindshot) with Calibration Tube & Closed-End
Straight piping applications with minimal stretch.
Sweeping bends up to 45°
Manufactured transitional liners and custom sizes are available
PVC Compatible with MaxPox VE

ML Max LinerTube TDSDownload (98.08 KB)

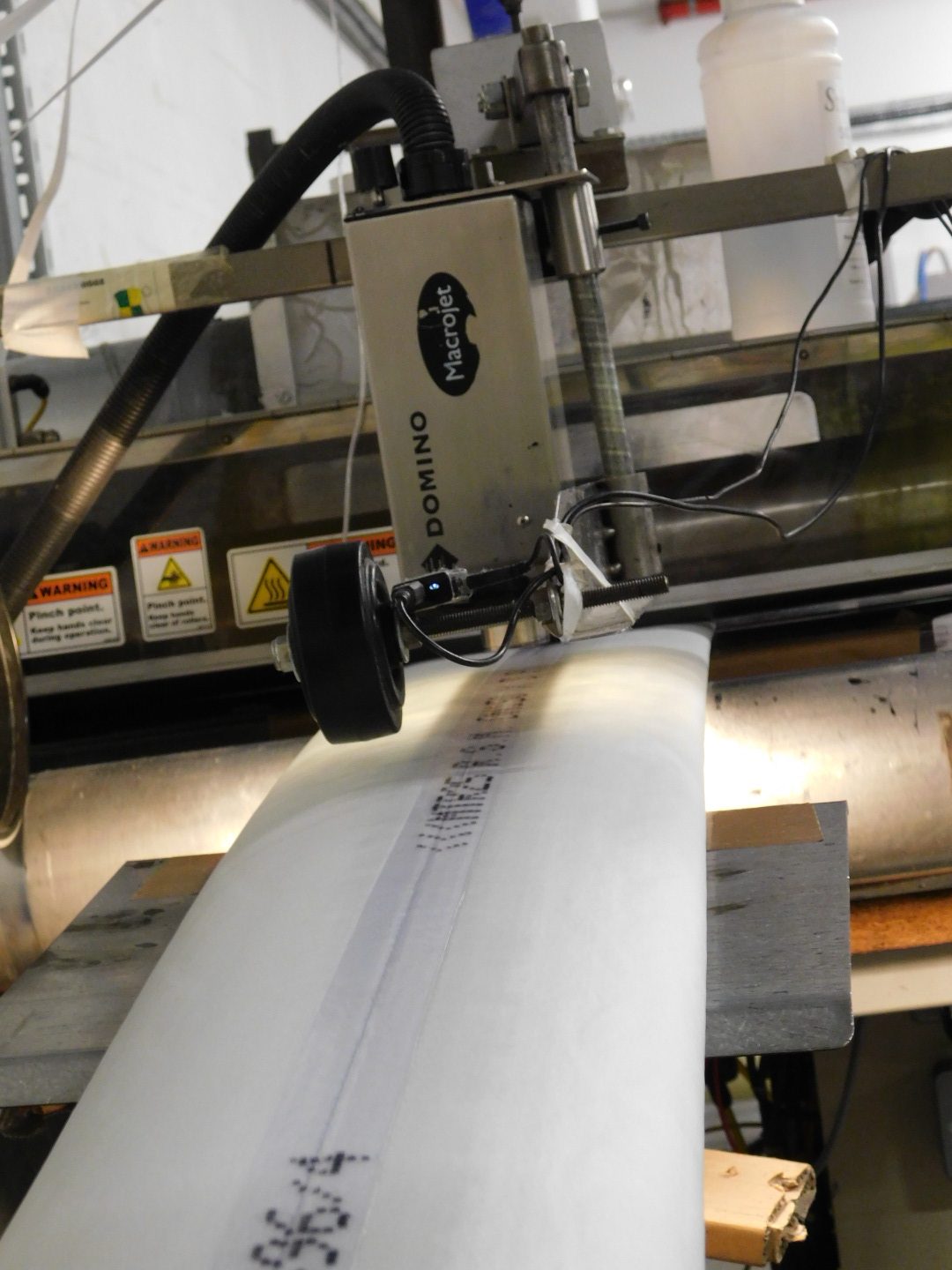

Max FlexLiner™

Non-woven, needle-punched polyester fiber felt with a PVC coating. Available with either a stitched skived seam or an overlocking chain stitched sewn process.

Open-End (Blindshot) with Calibration Tube & Closed-End
Straight piping applications with minimal stretch
May be used on sweeping bends up to 45°
Manufactured transitional liners and custom sizes are available
Compatible with MaxPox VE

ML Max FlexLiner TDSDownload (103.38 KB)

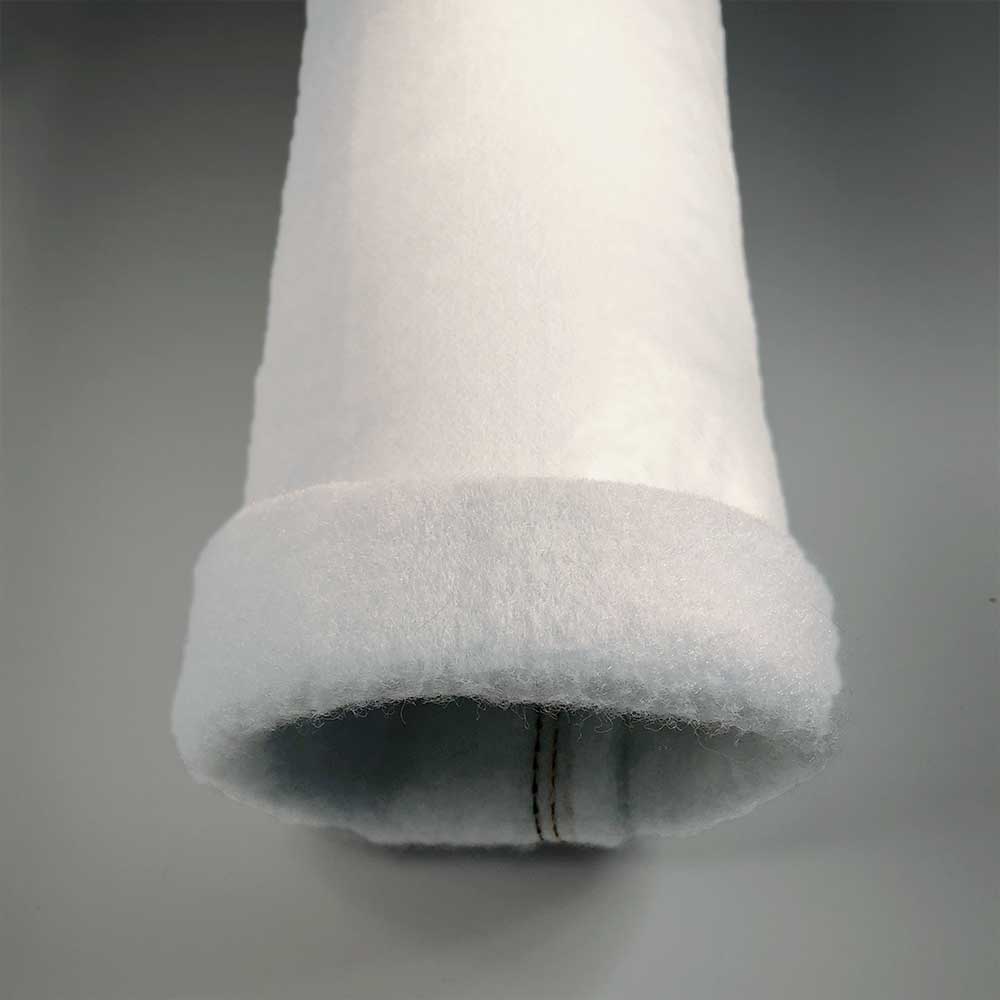

Max Flex 4D™

Non-woven, needle punched PE felt liner with an elastic PU coating. Capable of transitioning up to four diameters (4D) while maintaining finished thickness and negotiating bends up to 90°.

Open-End (Blindshot) with Calibration Tube
Closed-End
For transitioning sizes / change in diameter
May be used on sweeping bends up to 90° with slight wrinkling
Custom sizes are available.

ML Flex 4D TDSDownload (99.61 KB)

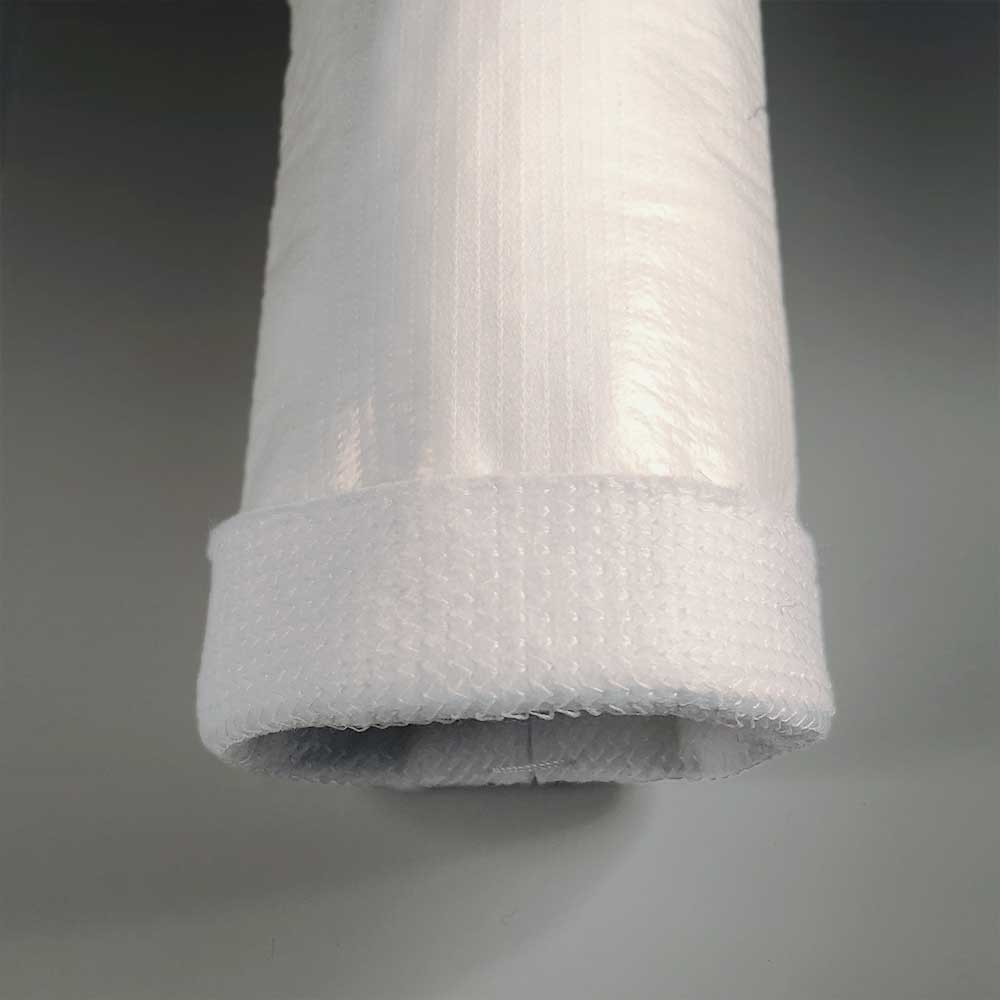

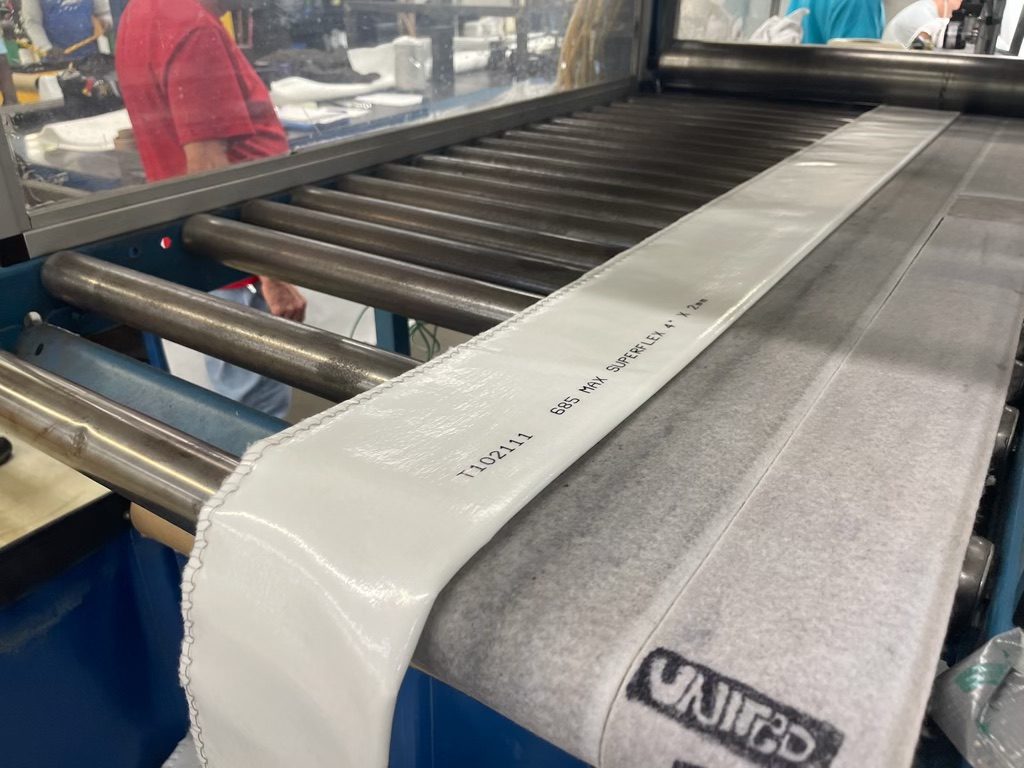

Max SuperFlex™

Non-woven, needle punched PE felt liner with an elastic PU coating. Capable of navigating multiple bends up to 90° and single-diameter transitions.

Open-End (Blindshot) with Calibration Tube
Closed-End
Pull-in-Place
Ideal for sweeping bends up to 90°
Manufactured transitions and custom sizes are available
Compatible with MaxPox VE

ML Max Superflex TDSDownload (100.51 KB)

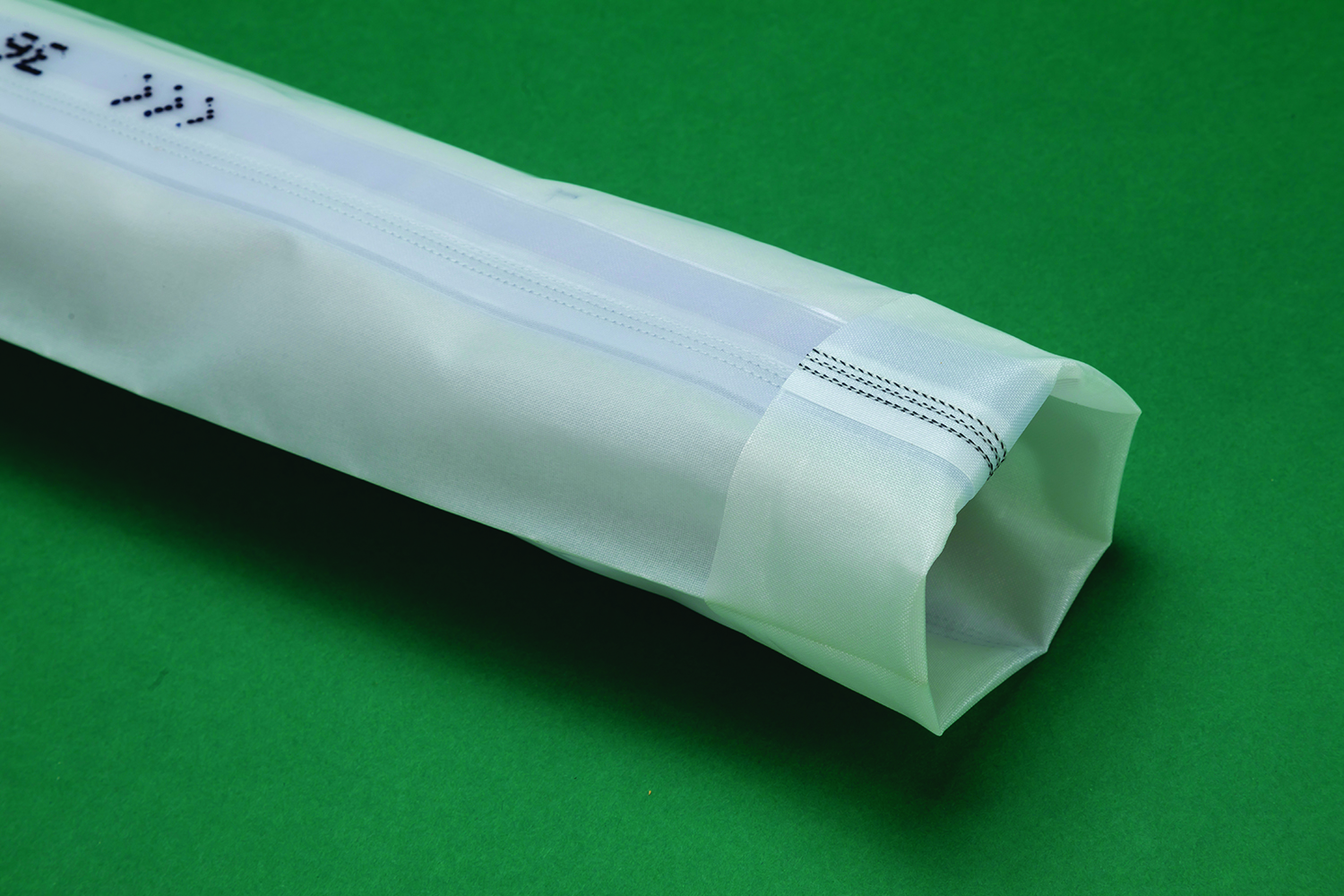

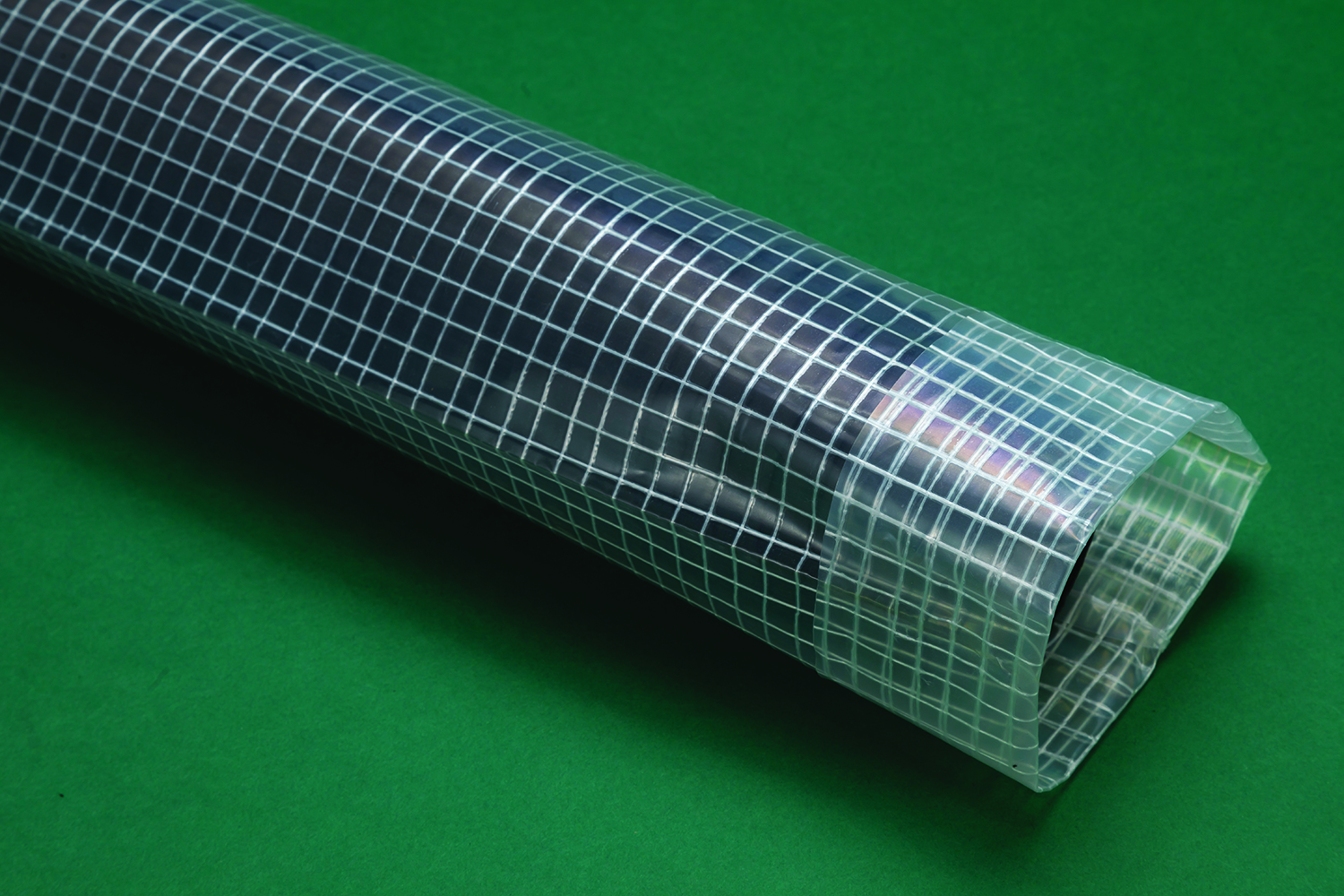

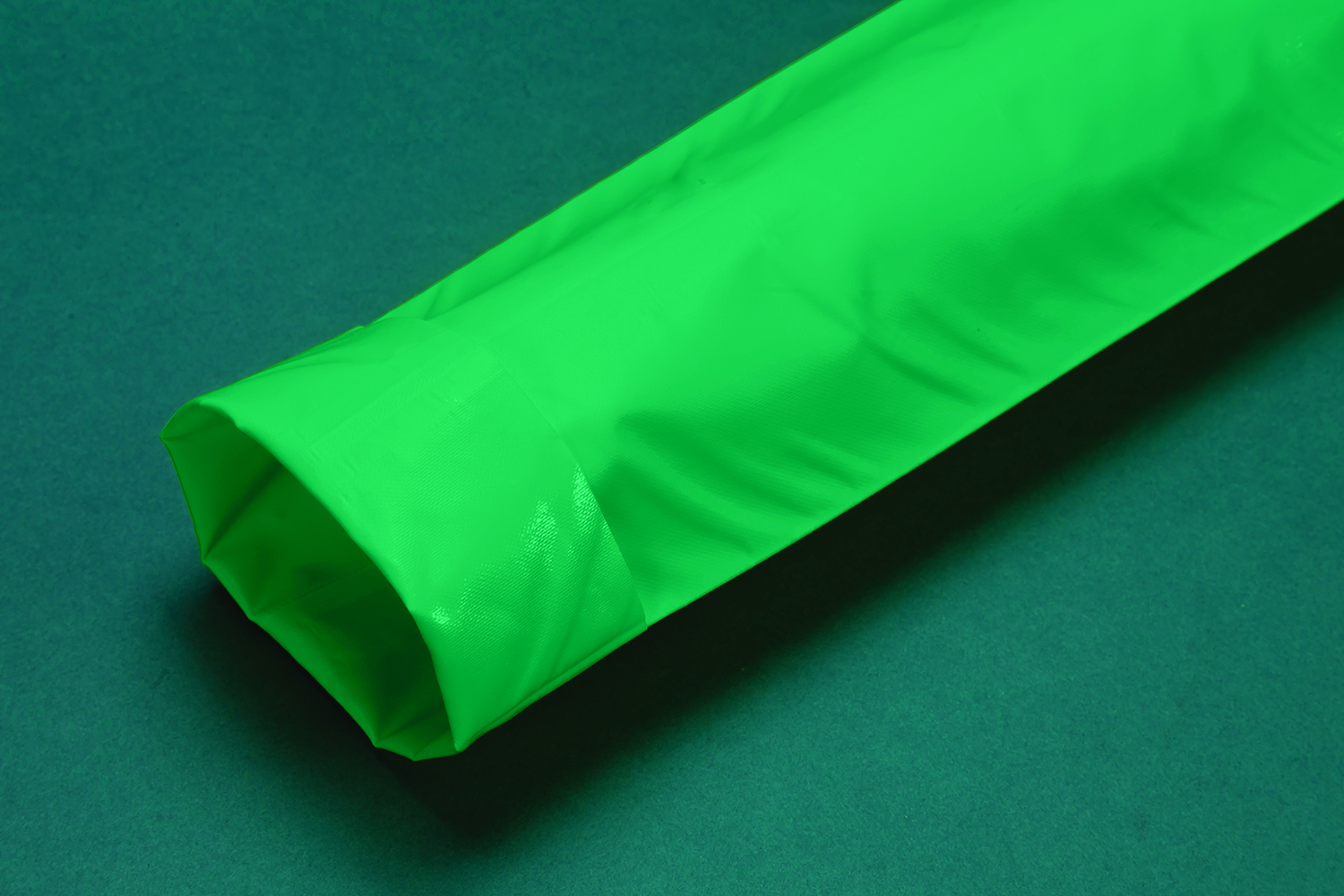

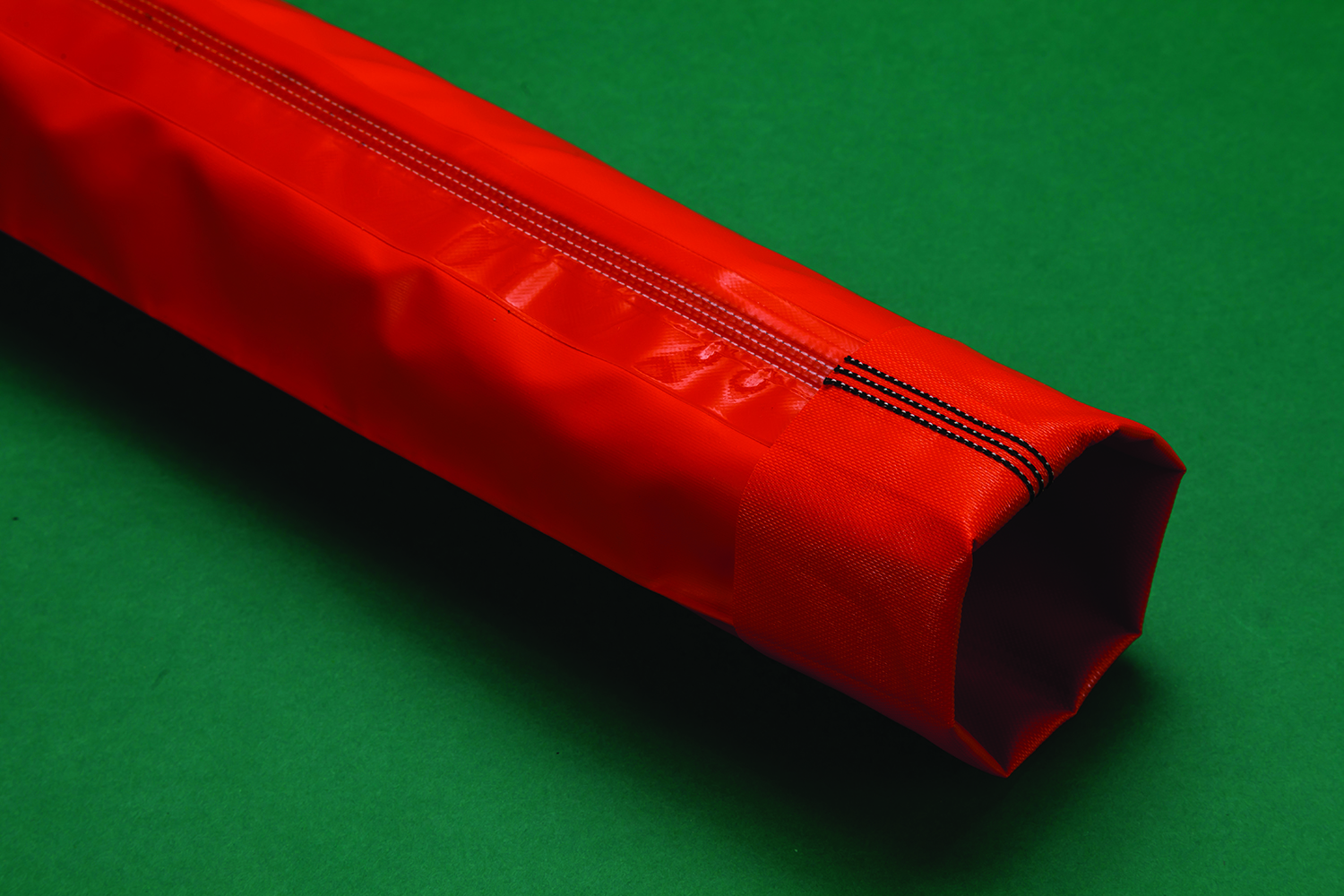

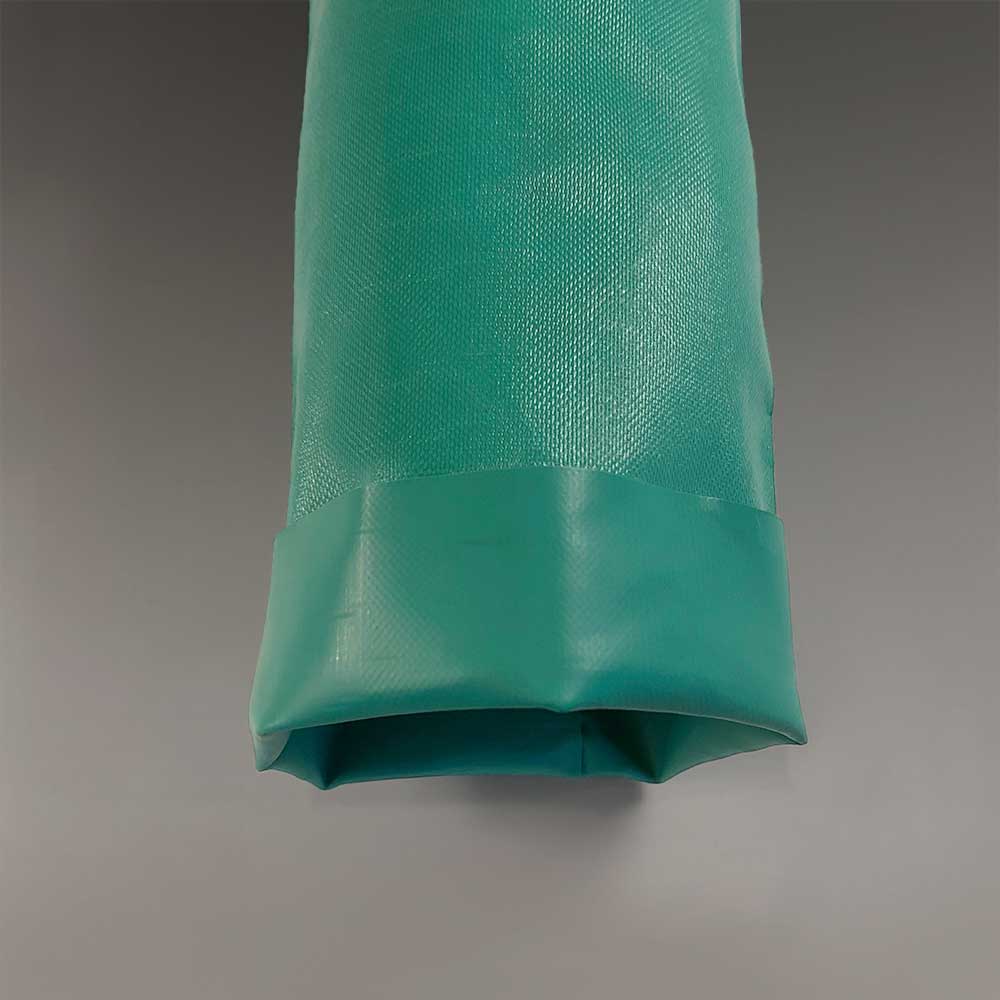

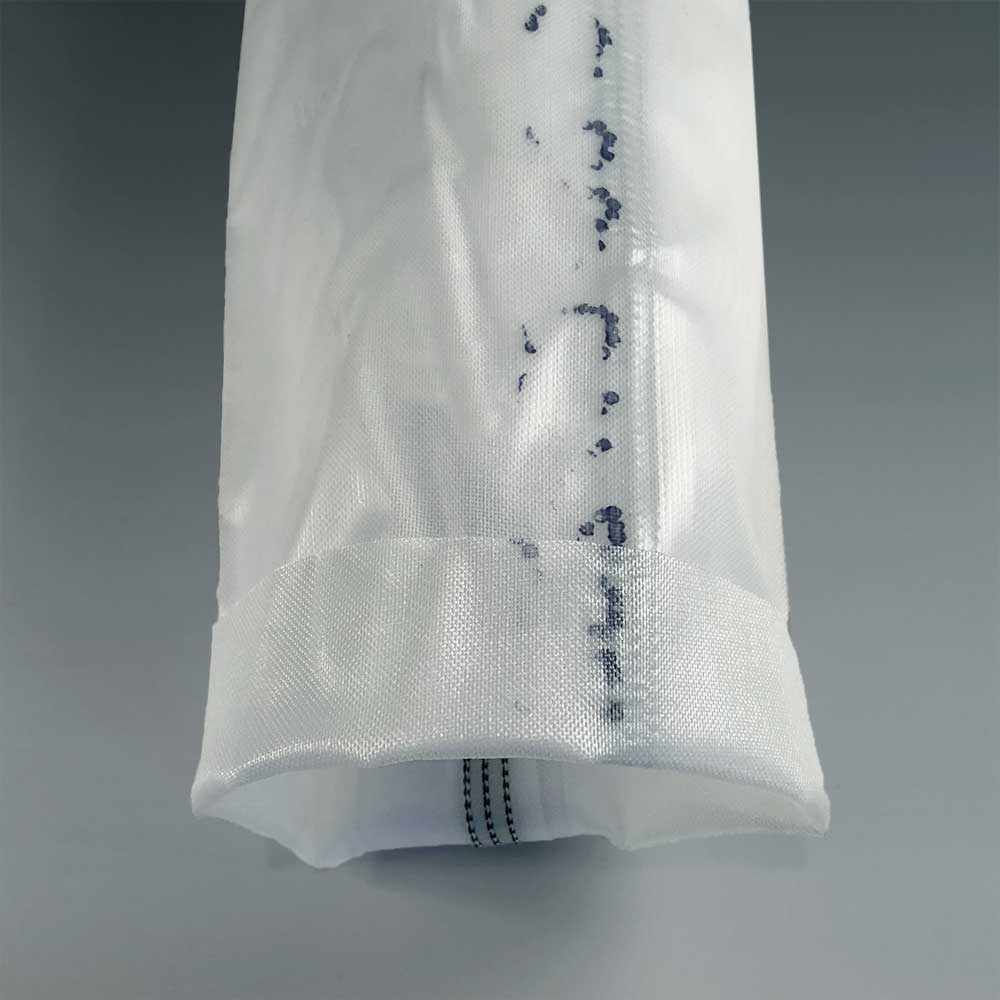

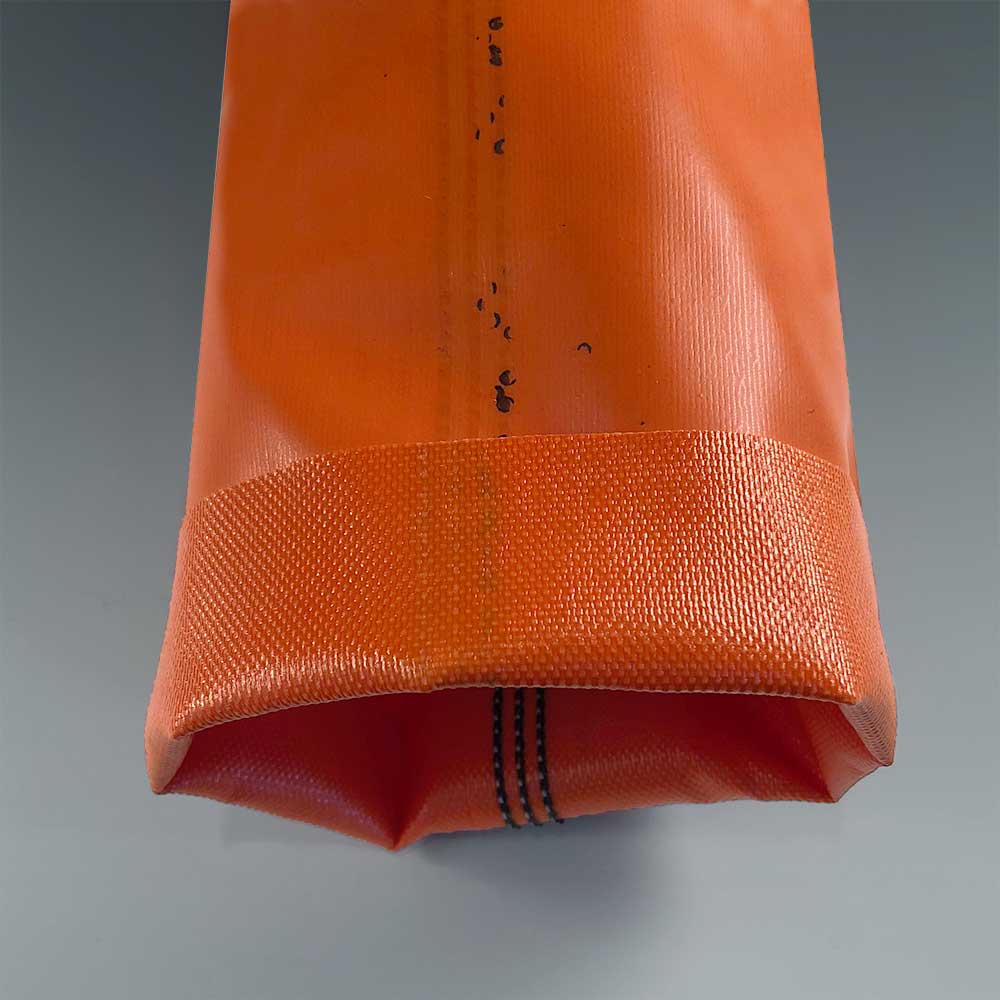

Max CalTubes^®

We offer a variety of Max CalTubes which are crafted from ultra-flexible, light-duty or medium-duty PE fabric with a PVC coating, ensuring durability and reliability. Many tube features a high-frequency welded overlap seam for enhanced strength and performance. Ideal for various applications, CalTubes offer a dependable solution tailored to meet diverse needs.
