Robotic Accessories

Providing More Versatility To Your Robotic System Capabilities

Vortex Companies offers a wide range of robot accessories, designed to enhance the functionality and versatility of our Schwalm robotic systems. Our accessories are readily available from our US inventory, ensuring quick deployment to meet the demands of any project.

Key Features of Our Robot Accessories:

Quick Deployment: All accessories are stocked in the US for rapid availability, reducing downtime and facilitating immediate project needs.
Enhanced Functionality: From grinding attachments to cleaning tools, our accessories expand the capabilities of Schwalm robots, allowing for a wider range of applications.
Easy Integration: Designed for seamless compatibility with Schwalm robots, these accessories can be quickly attached and utilized, enhancing both the efficiency and effectiveness of pipeline rehabilitation tasks.

With Vortex’s robot accessories, contractors can quickly adapt to varying project requirements, ensuring precision and efficiency in every operation.

Attachments

Schwalm Robots are compatible with nearly every attachment and cutting tool on the market. Park of the Schwalm offering are chisels, grinders. When choosing a cutting head, prefer to pair them up with the rugged line of SDT cutting tools.

Mushroom Hhead milling cutter
Tungsten carbide ball cutter
Polycrystalline diamond (PCD) ball milling cutter
And more!

Vortex Schwalm Multi Purpose Sewer Rehab Robots BrochureDownload (7.81 MB)

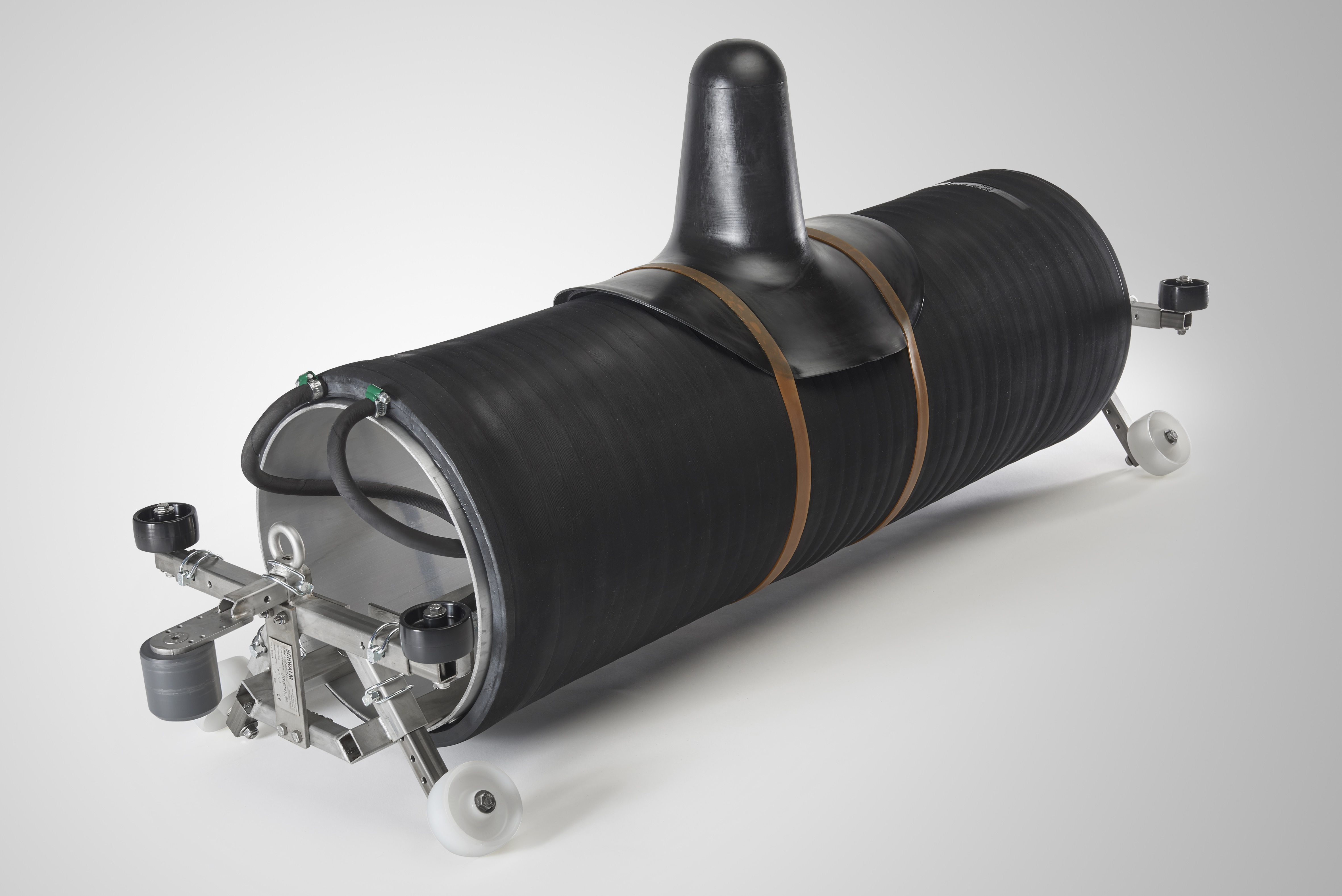

HutlinerPacker^®

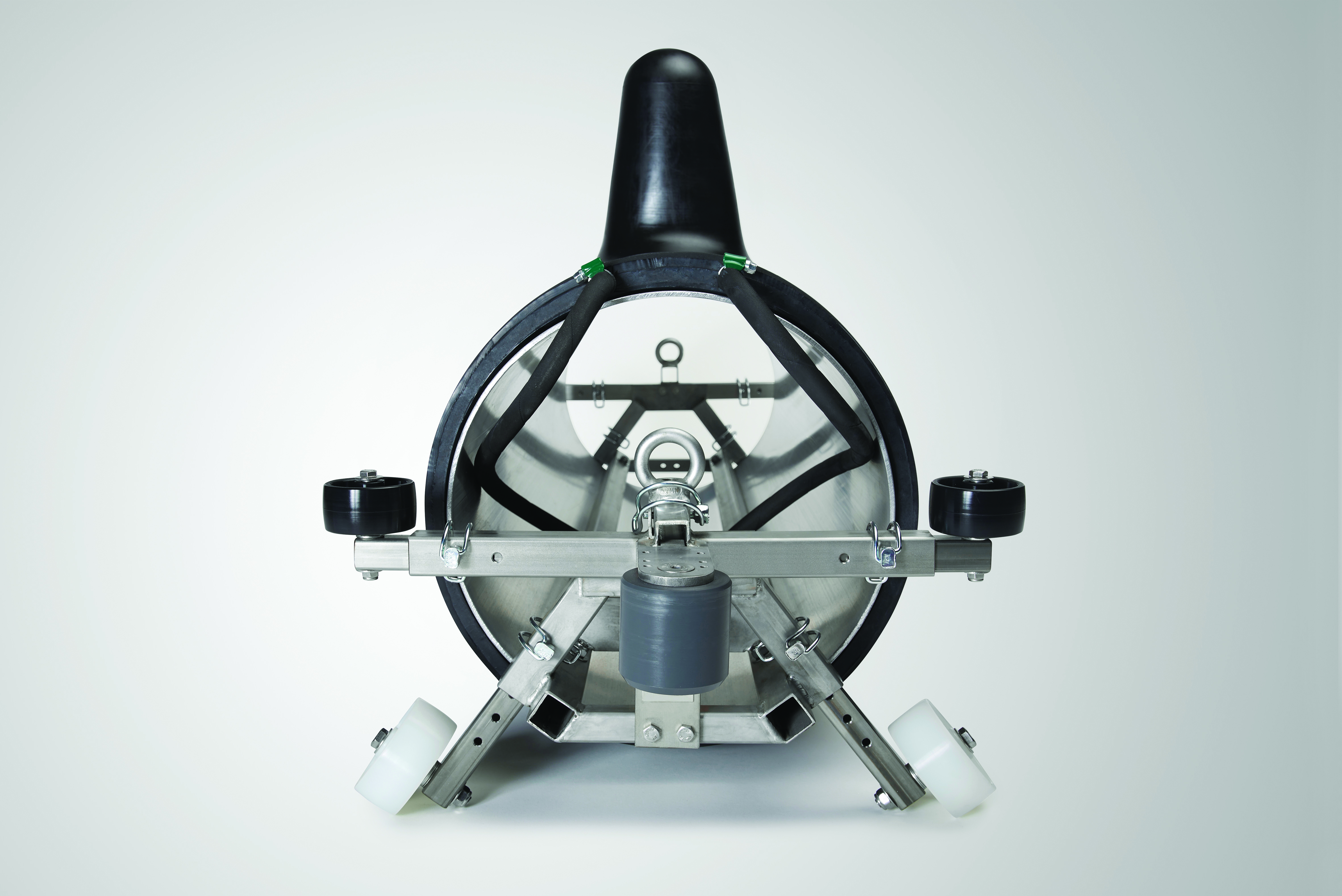

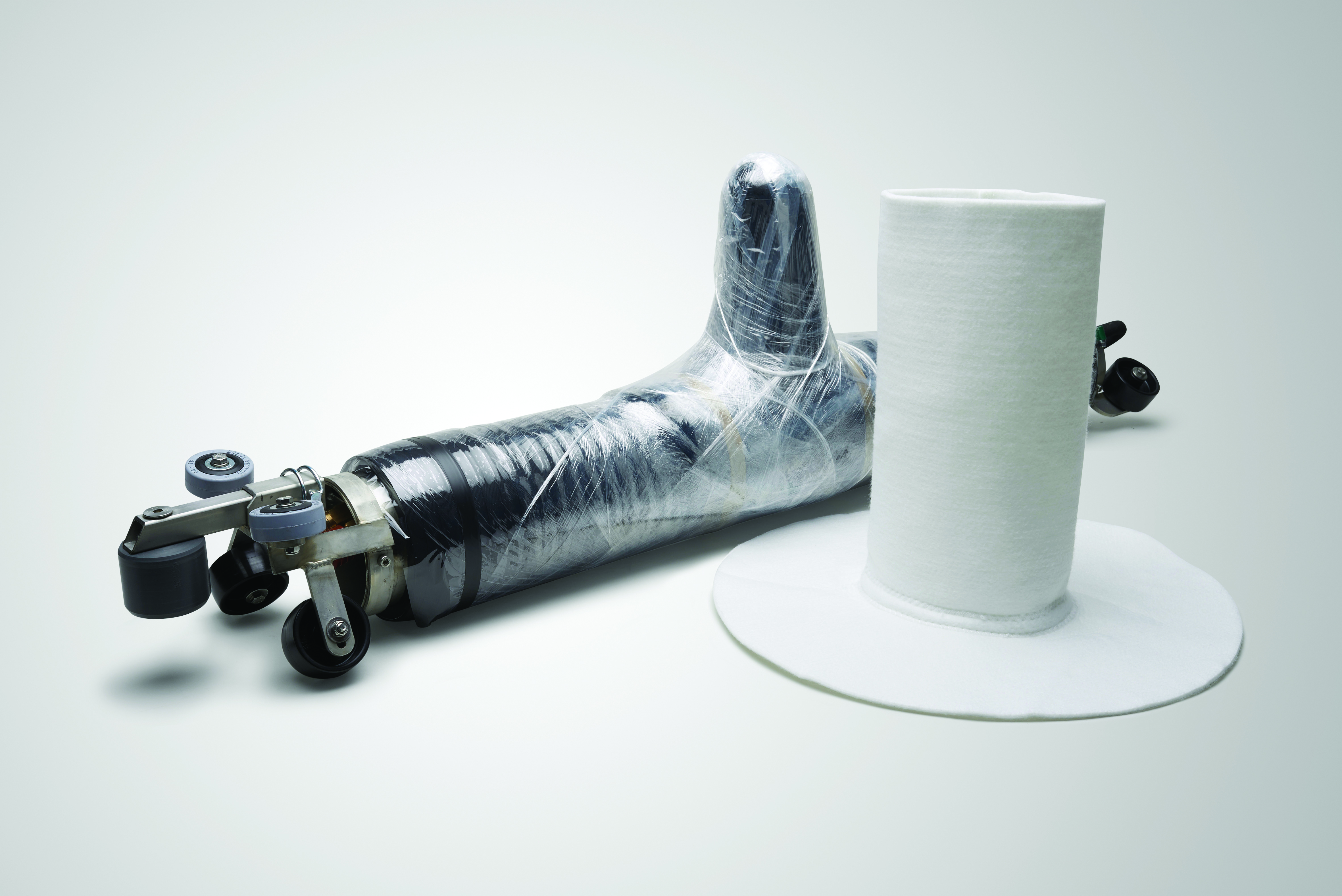

The patented HutlinerPacker^® is produced manually in the Schwalm manufacturing process. These are inflatable hollow bodies made from rubber and metal with a mountable rubber hat for lateral reinstatement. These special devices developed by Schwalm serve to install sectional liner repairs and hat seals into lateral connections.

The rubber hats, available in various sizes, are connected to the HutlinerPacker via a universal threaded mount. HutlinerPacker with a flexible packer body can even be used in curved pipes, depending on the site conditions.

Equipment & Accessories:

HutlinerPackers from DN100 to DN800
Rubberhats from DN90 to DN250 in different versions
Oval pipe accessories for egg shapes

HutlinerPacker Flyer-1Download (1.22 MB)

Robo Tools

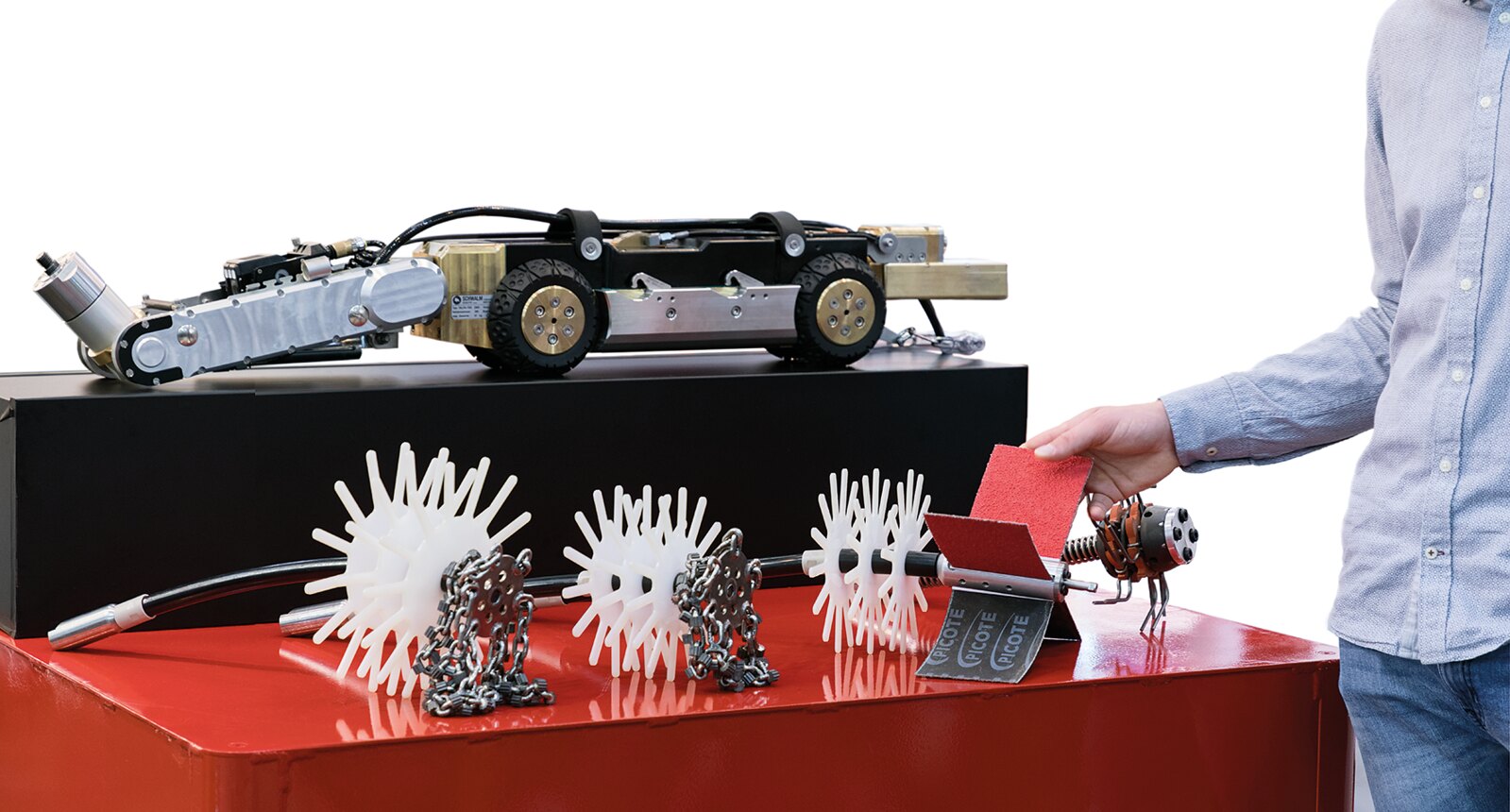

Picote Robo Tools are exclusively available ONLY for Schwalm Robots. A specially designed air motor can be mounted on an existing Schwalm Talpa FSR 2060 Robot to operate the new tools. The air motor runs at max 1,500 rpm. Combine Picote’s exclusive Robo Tools with the advanced Schwalm Robotic System to create a powerful and versatile solution for your job site.

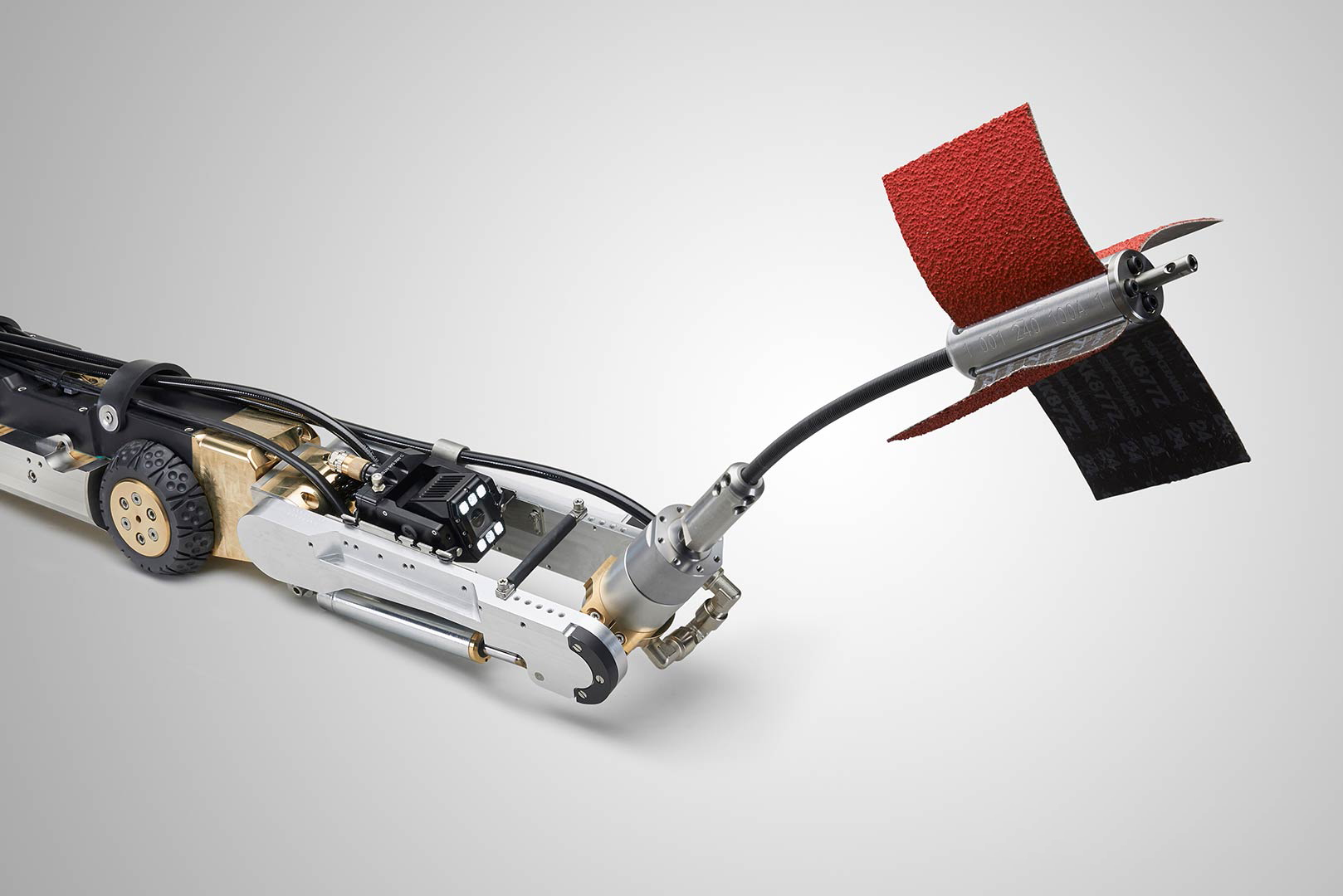

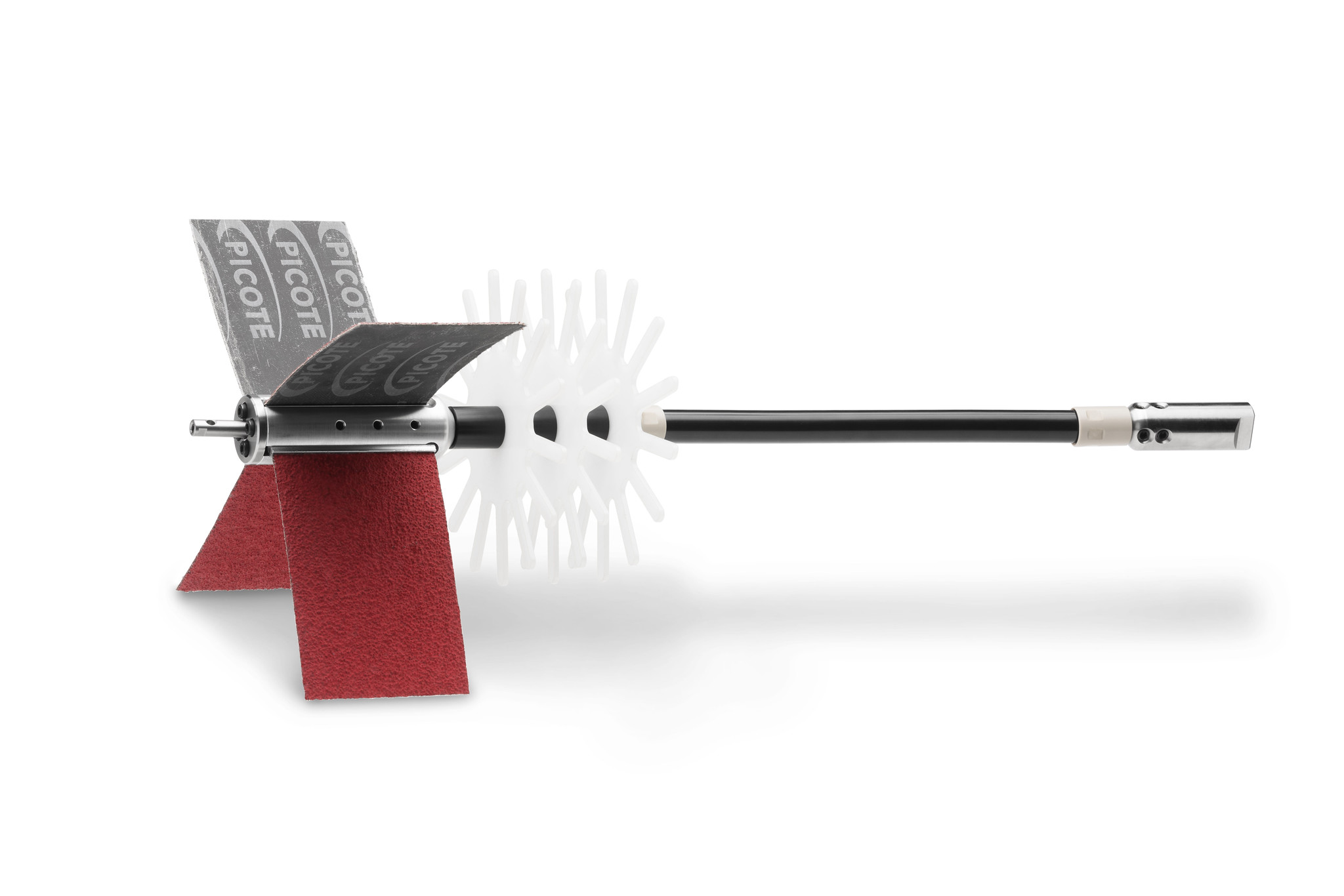

Robo Smart Cutter

Take advantage of the fine-tuning power of the Robo Smart Cutter. Grind away seams, welding beads and other inconsistencies in the pipe quickly and easily. Steering option included. Available sizes: 6″, 8″, 10″ and 12″.

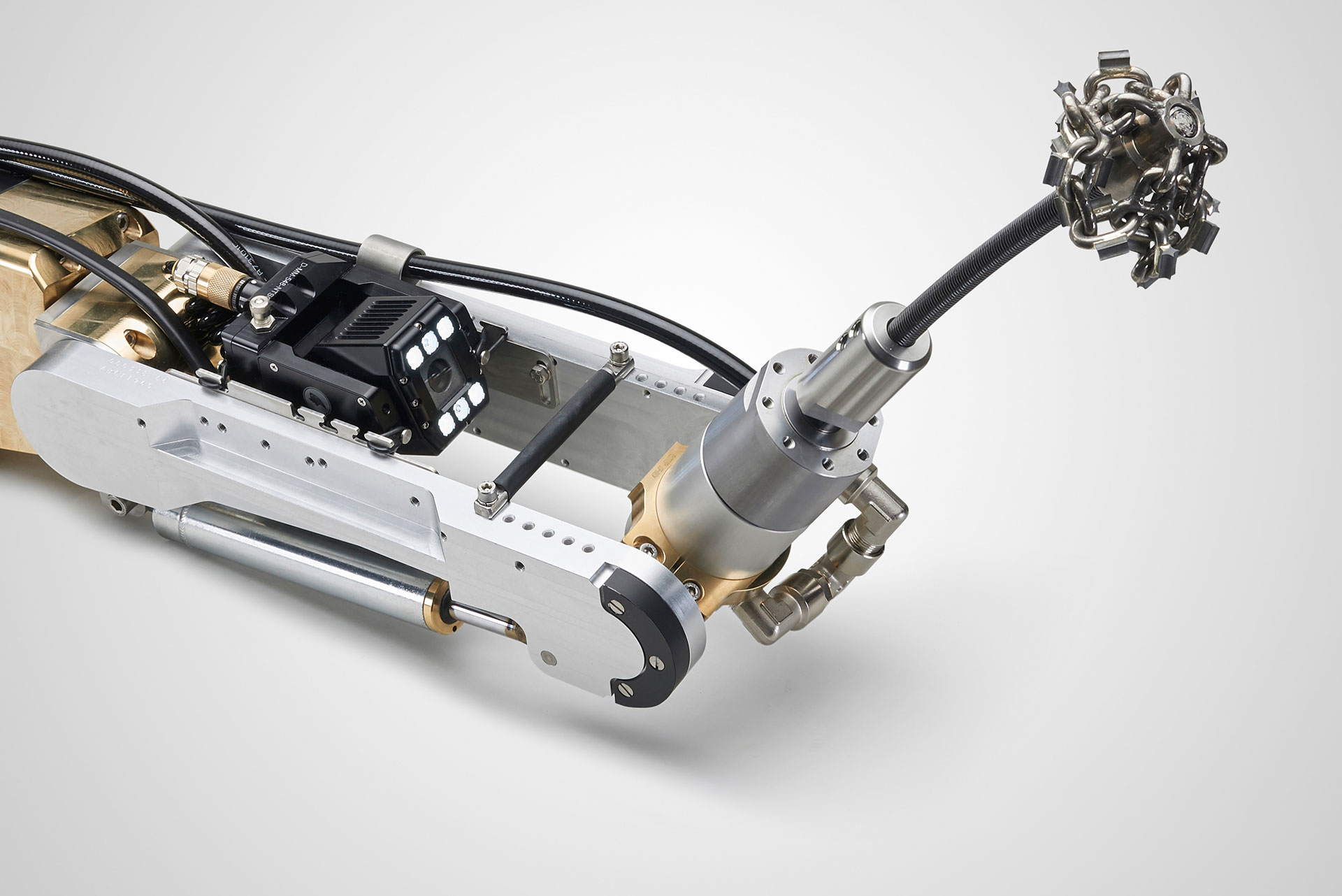

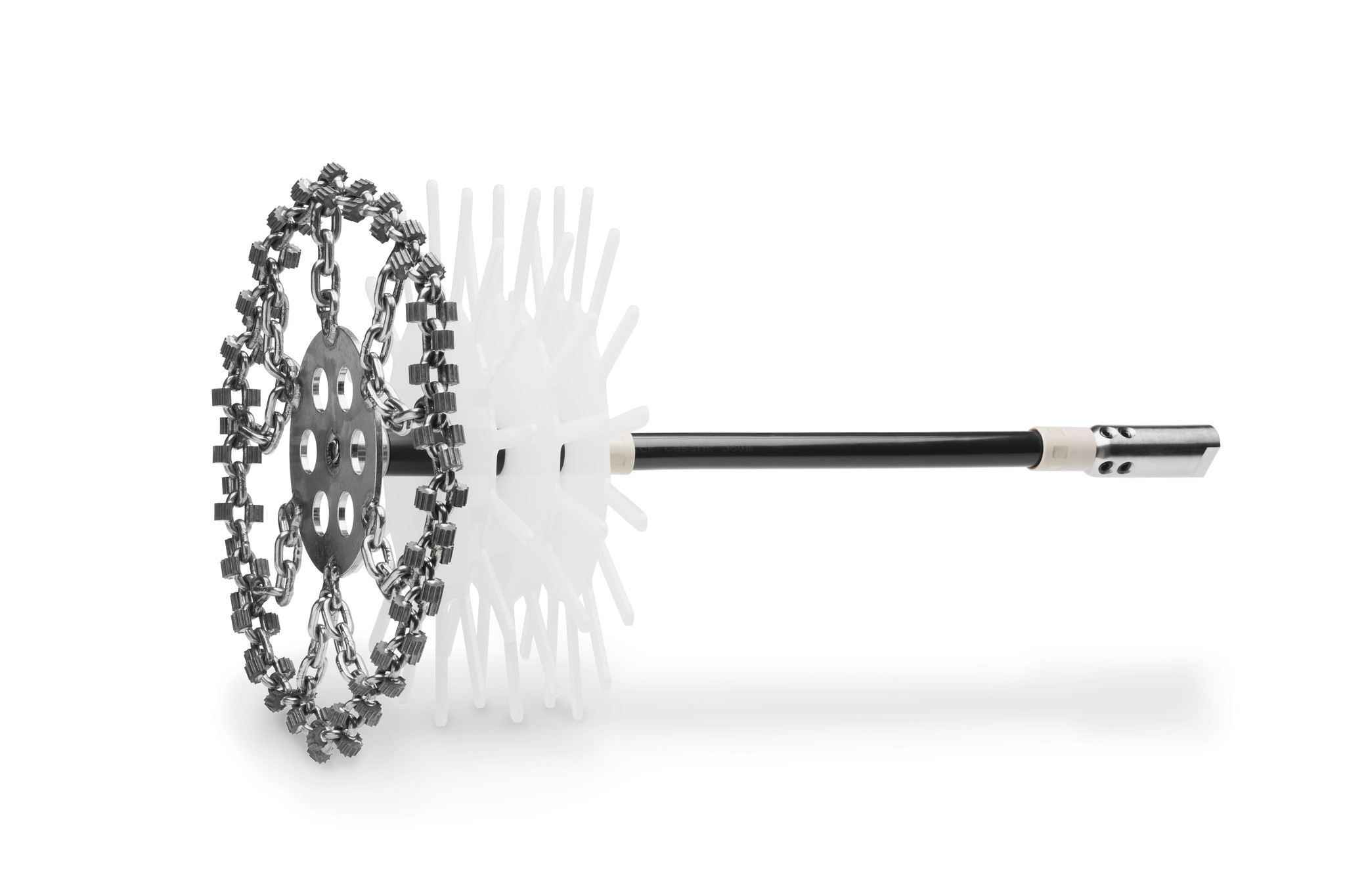

Robo Cyclone

Descale pipe like never before with the Picote Premium Cyclone Chain. Mount the Robo Cyclone on a robot for efficient cleaning and grinding. Available sizes: 6″, 8″, 10″ and 12″.

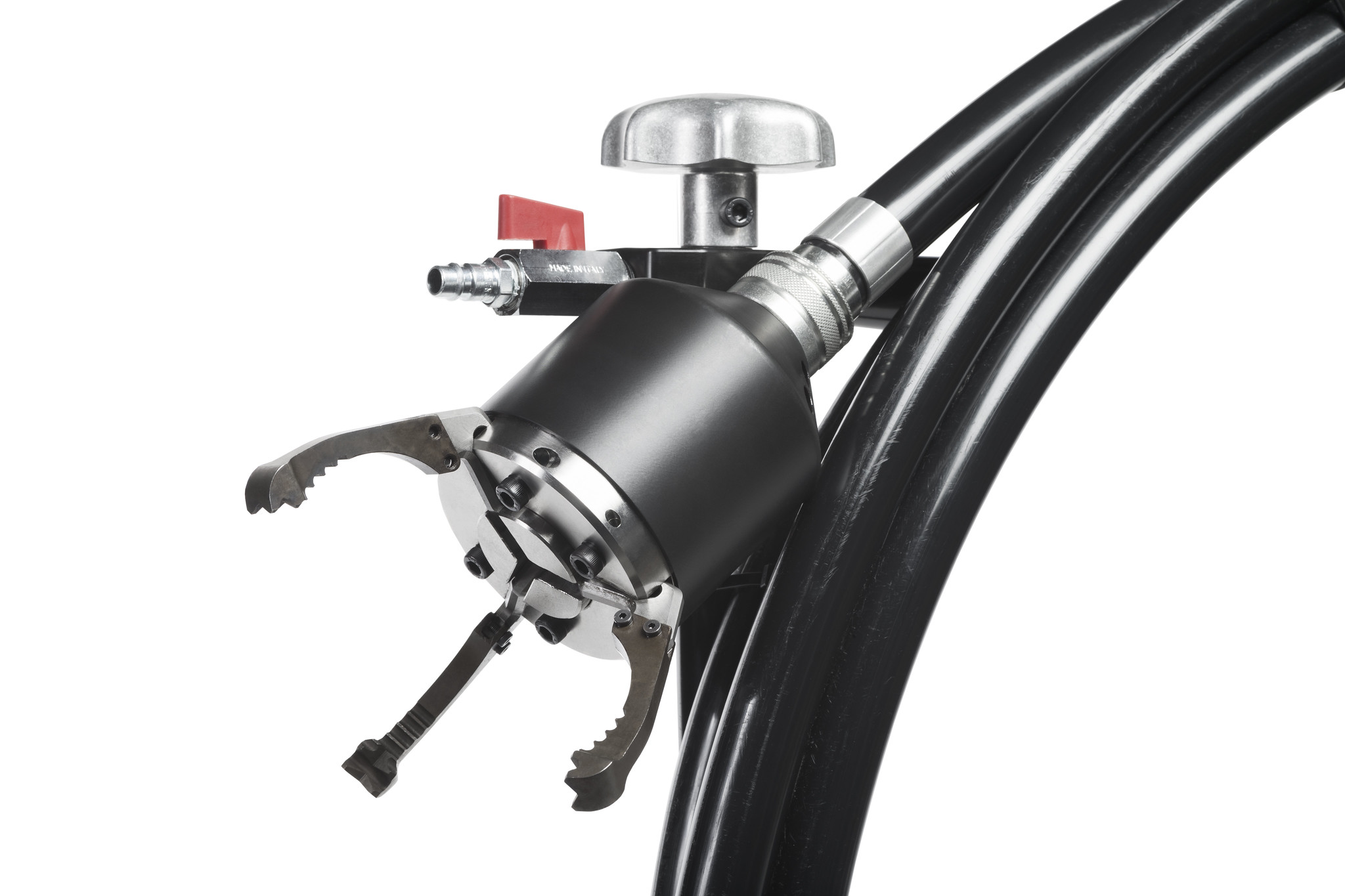

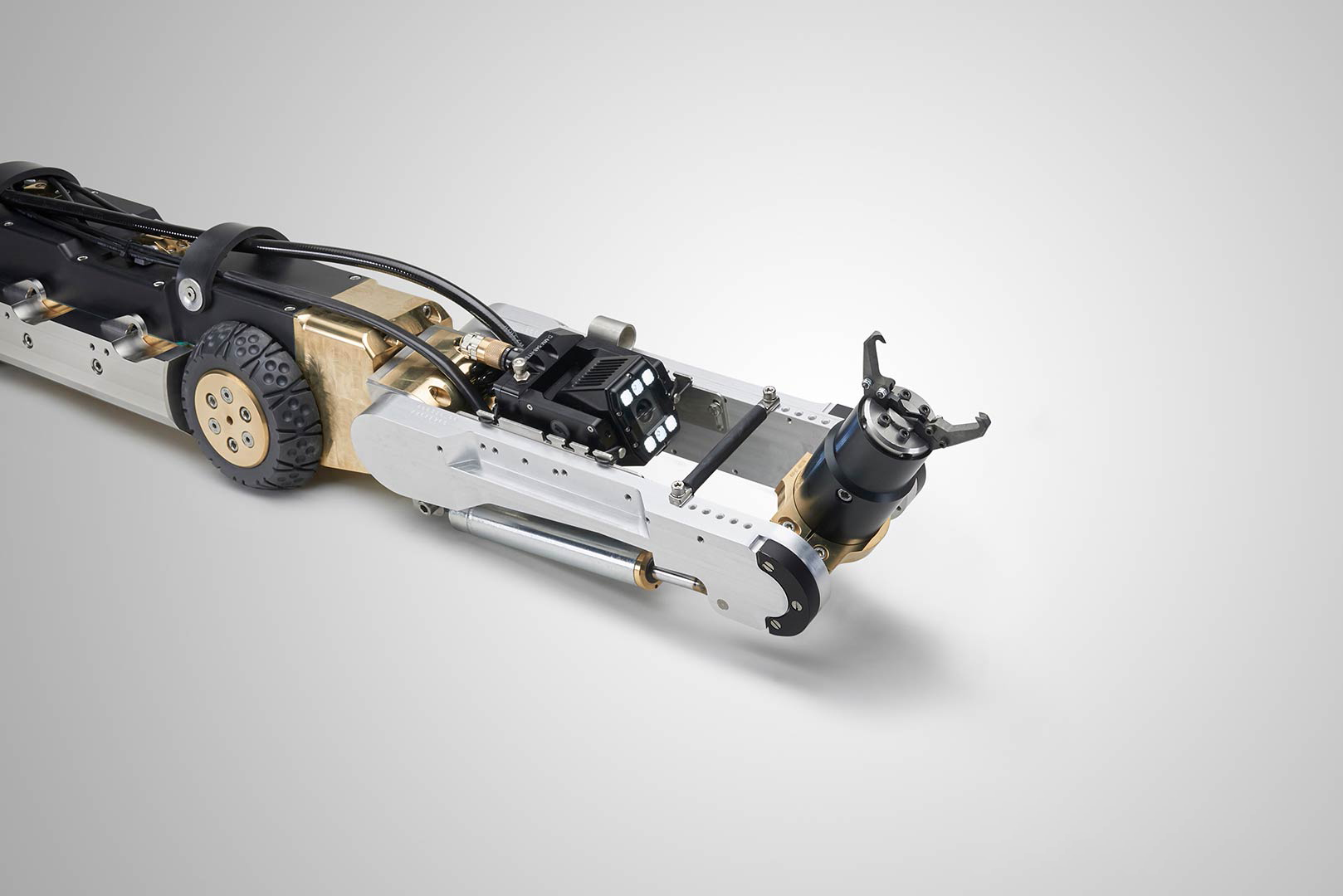

Robo Grabber

Turn your robot into a retrieval device and remove items from hard-to-reach places weighing up to 77 lb. Available sizes: 4″ or larger pipes.

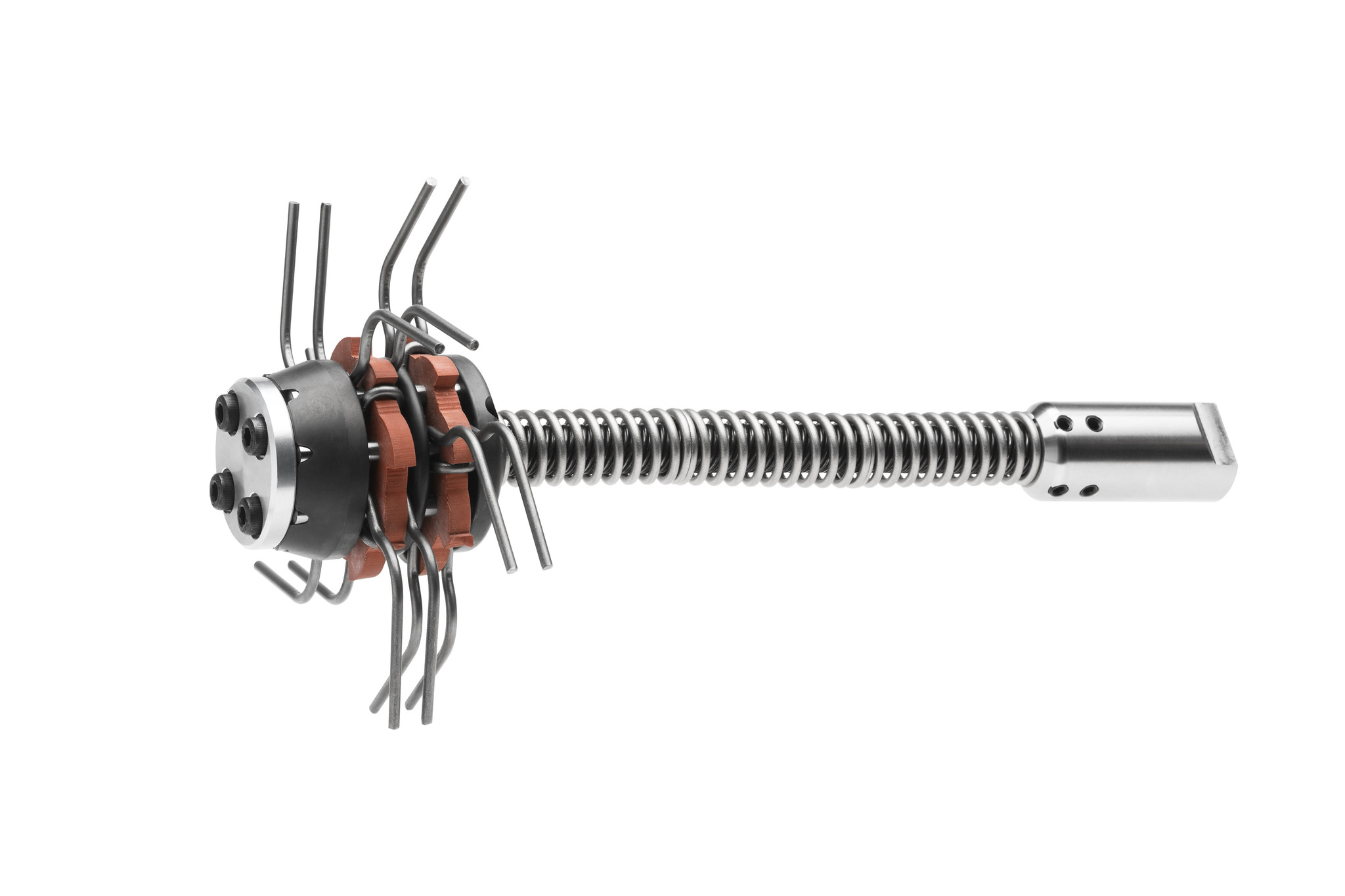

Robo Smart Spider

Descale fragile pipes with ease with your multi-use robot. Gentle on brass connections in water mains. Available sizes: 6″ and 8″.

Robo Tools FlyerDownload (284.98 KB)

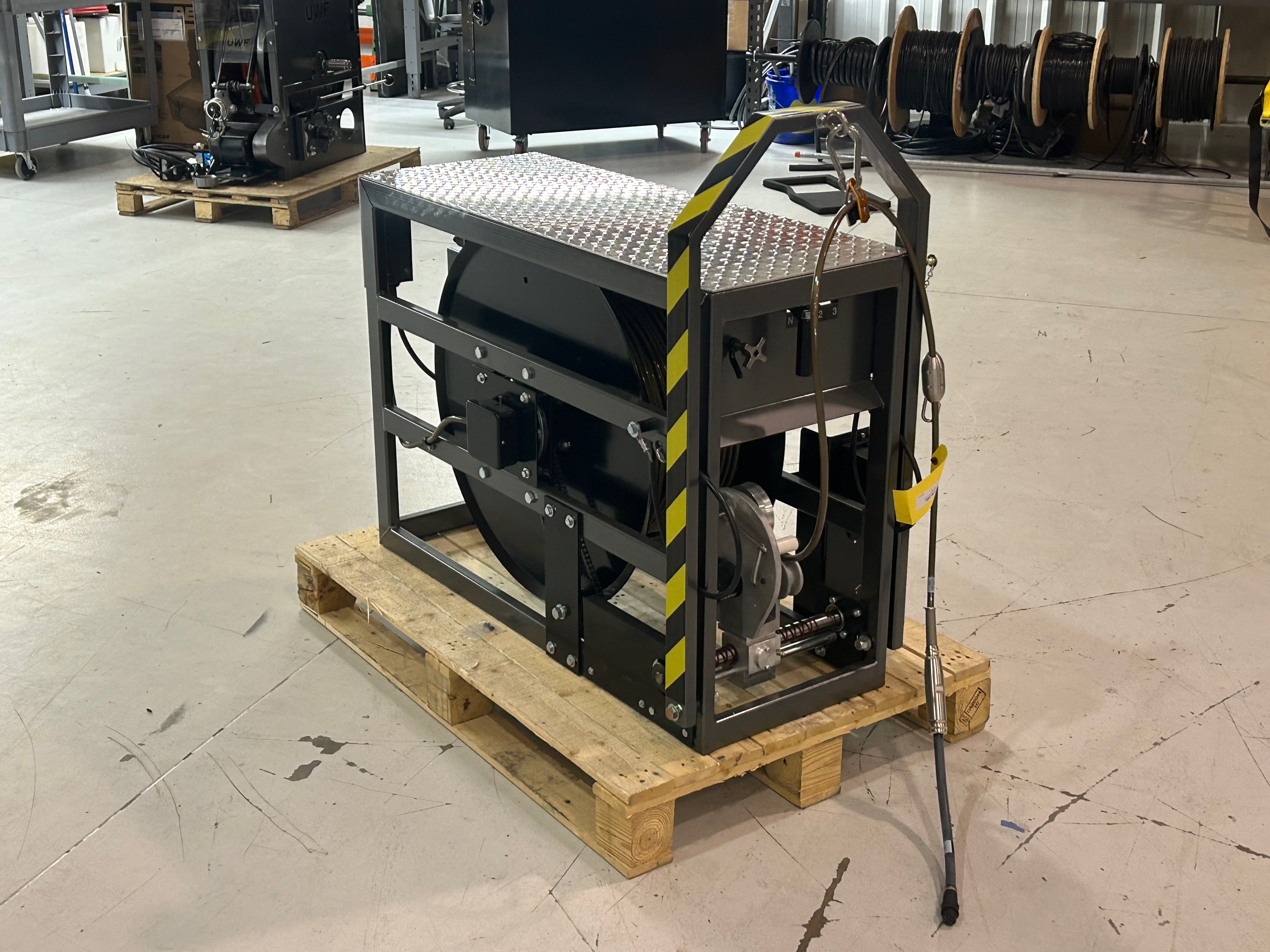

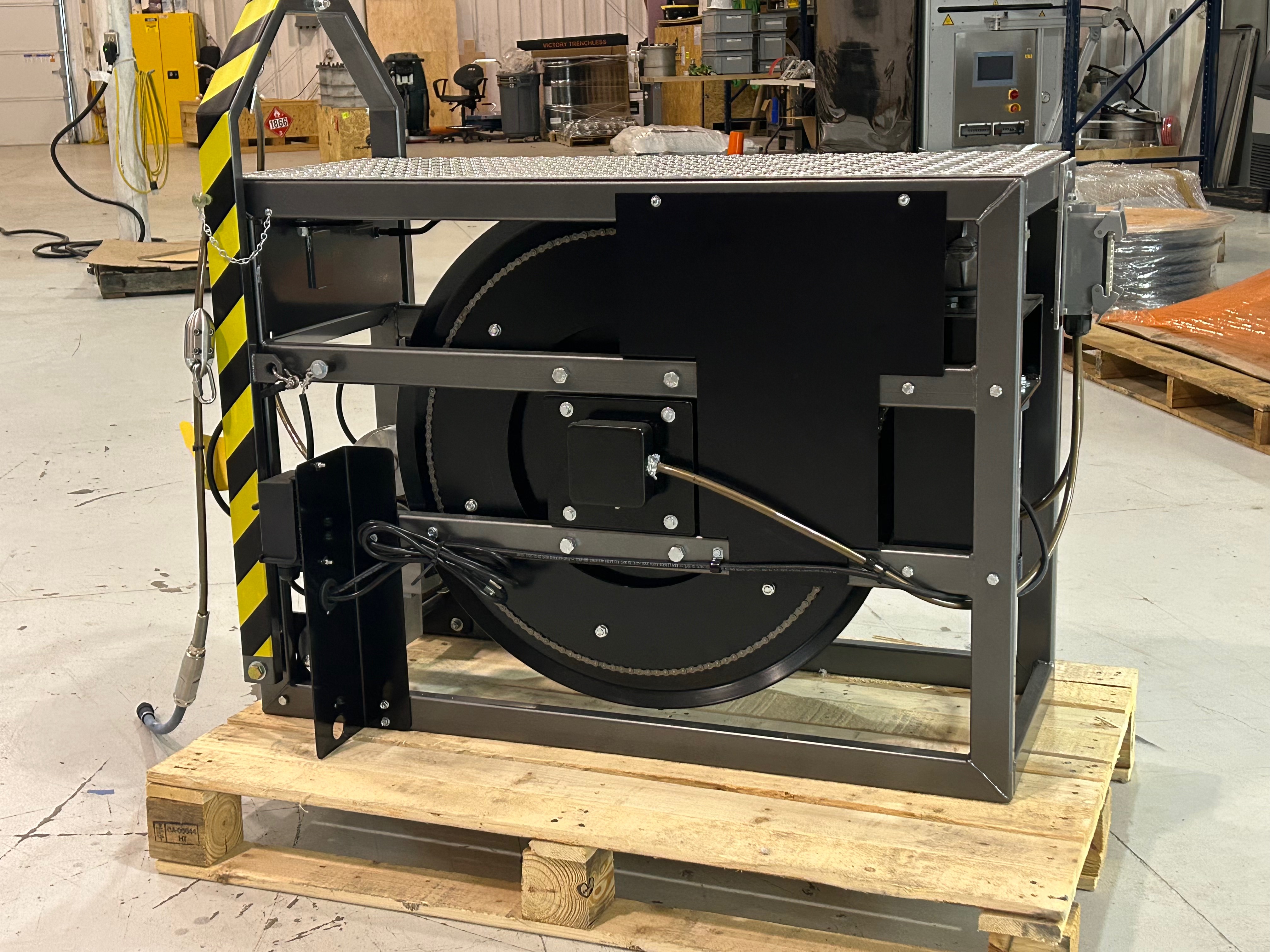

Cable Reels

Choose from two Cable Reel options to best serve your robot’s demands.

Electrically powered and self-leveling winding
Original Schwalm Reel
19 pin, cable length: 660 ft.

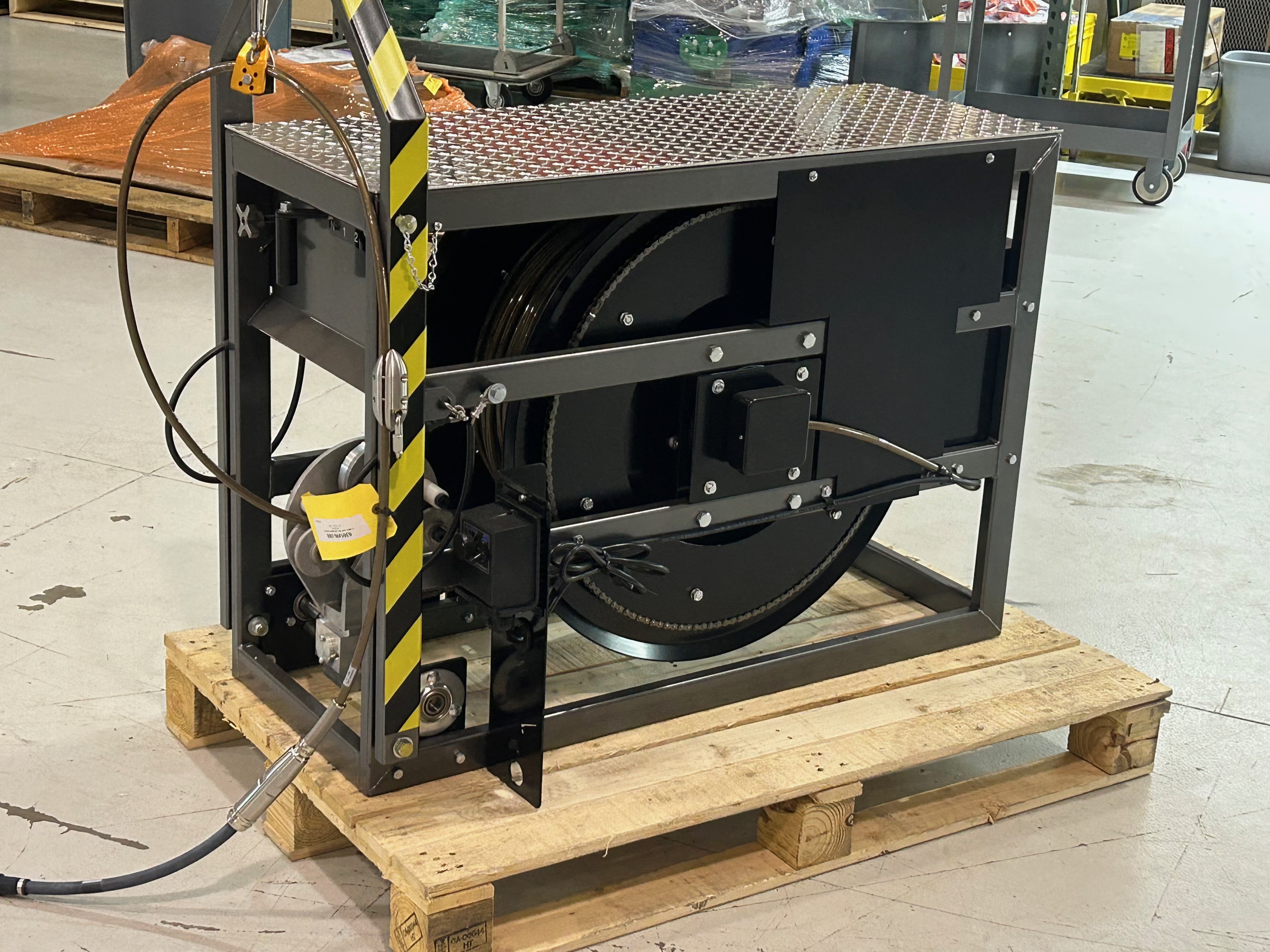

New USMI Universal Cable Reel
Cable length: 1,000 ft.
Accepts Aries or Cues cable
110 V or 230 V power
Output and retrieval: automatic or manual, winding tension and speed, closed or open-loop control
Cable length reading accurate to nearest 1/2”
Digital display reset function for positioning to defined zero point

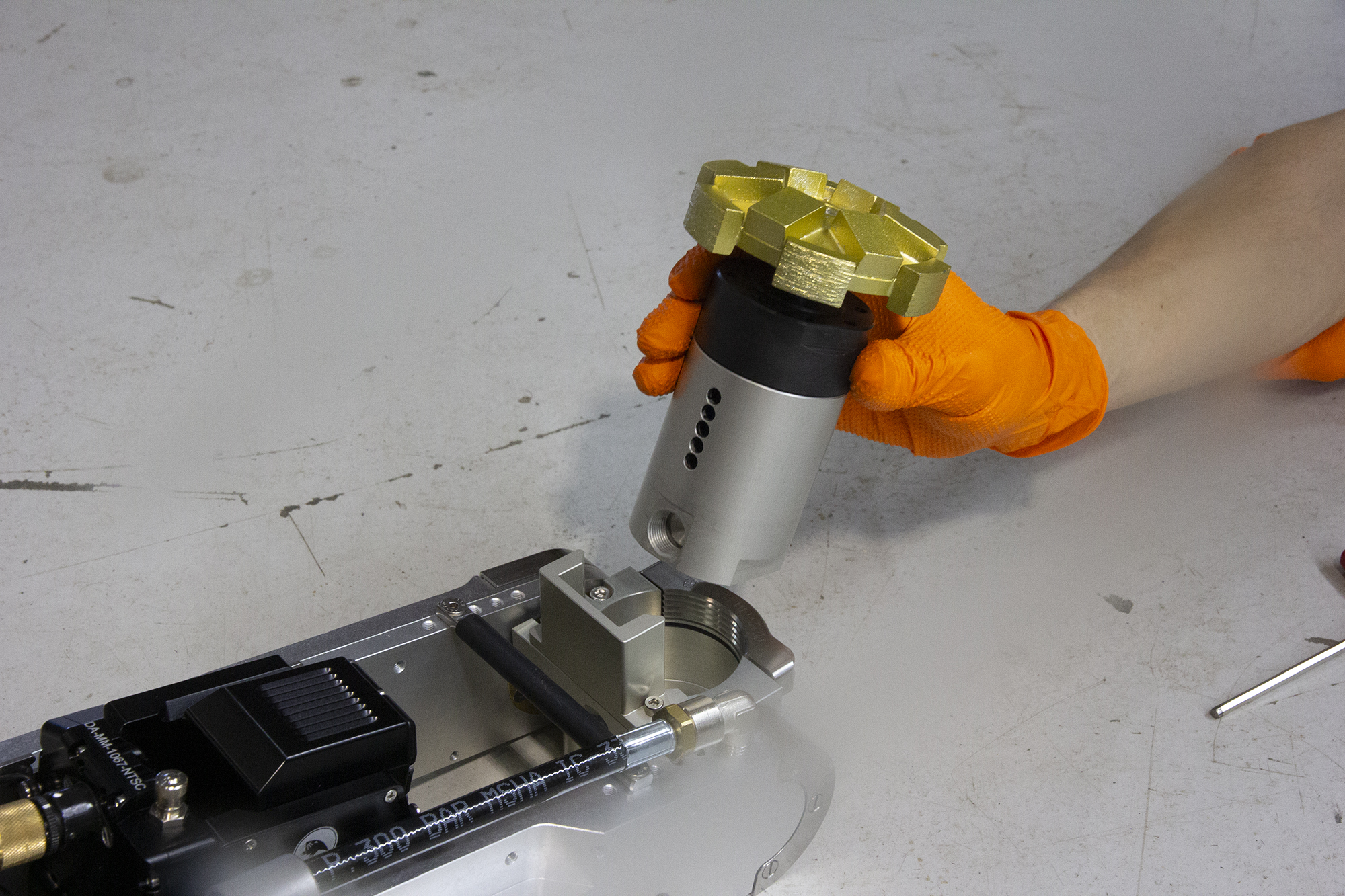

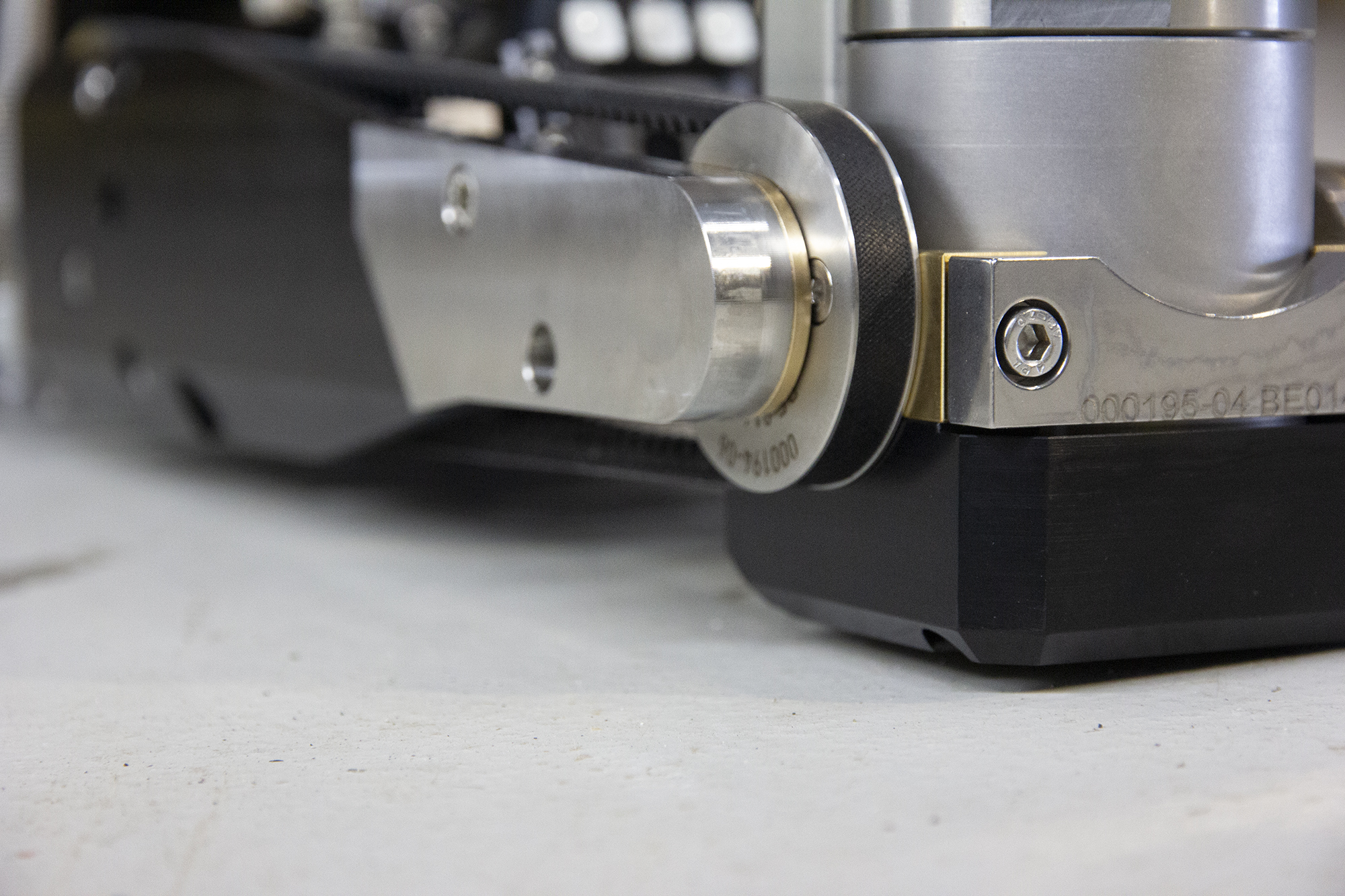

Motor Cups

The Schwalm motor cup allows for improved rotation, control and stability of your air motor. No special installation add-on required. Kit can be installed in the field.

Contact sales@vortexcompanies.com for details and more information.

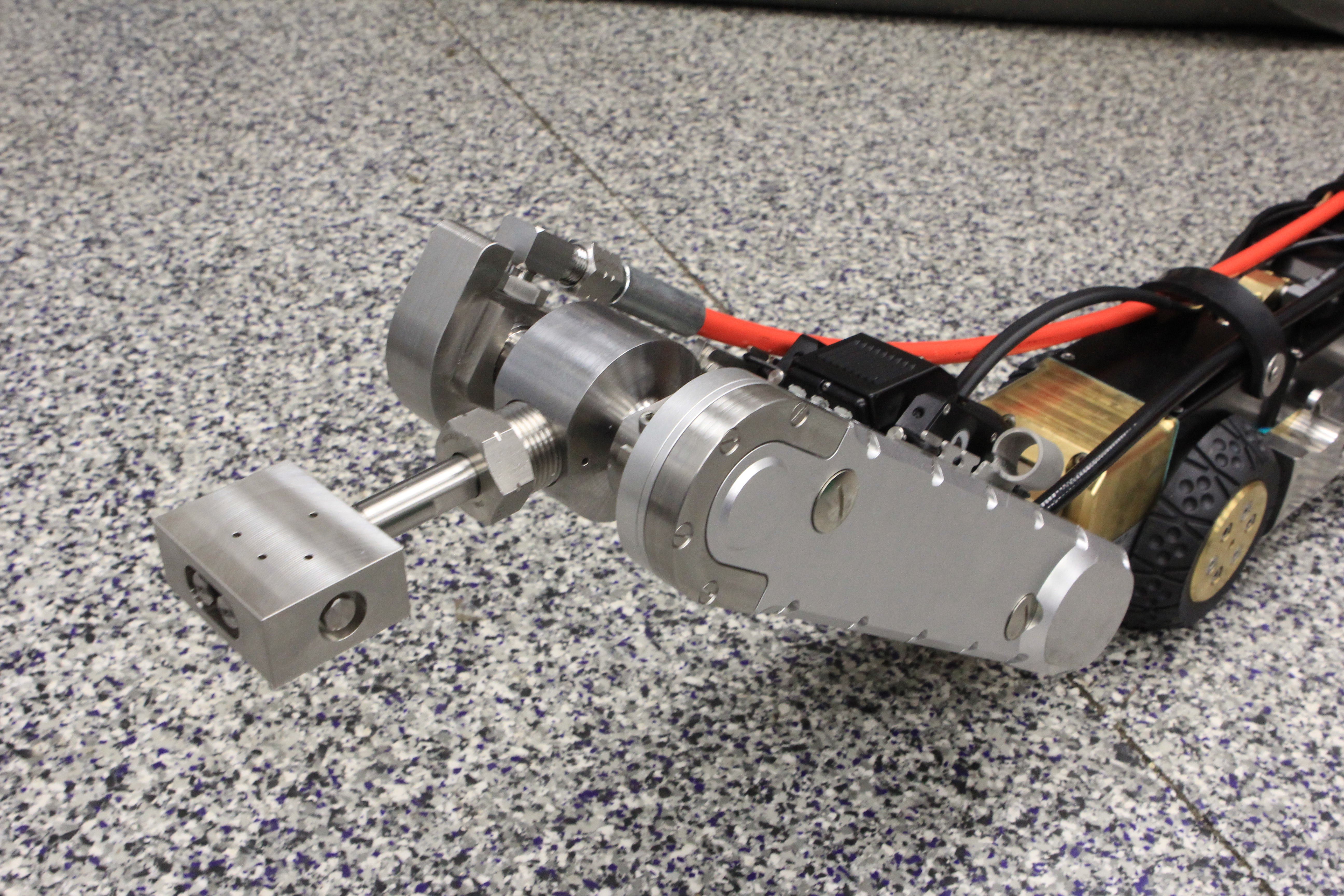

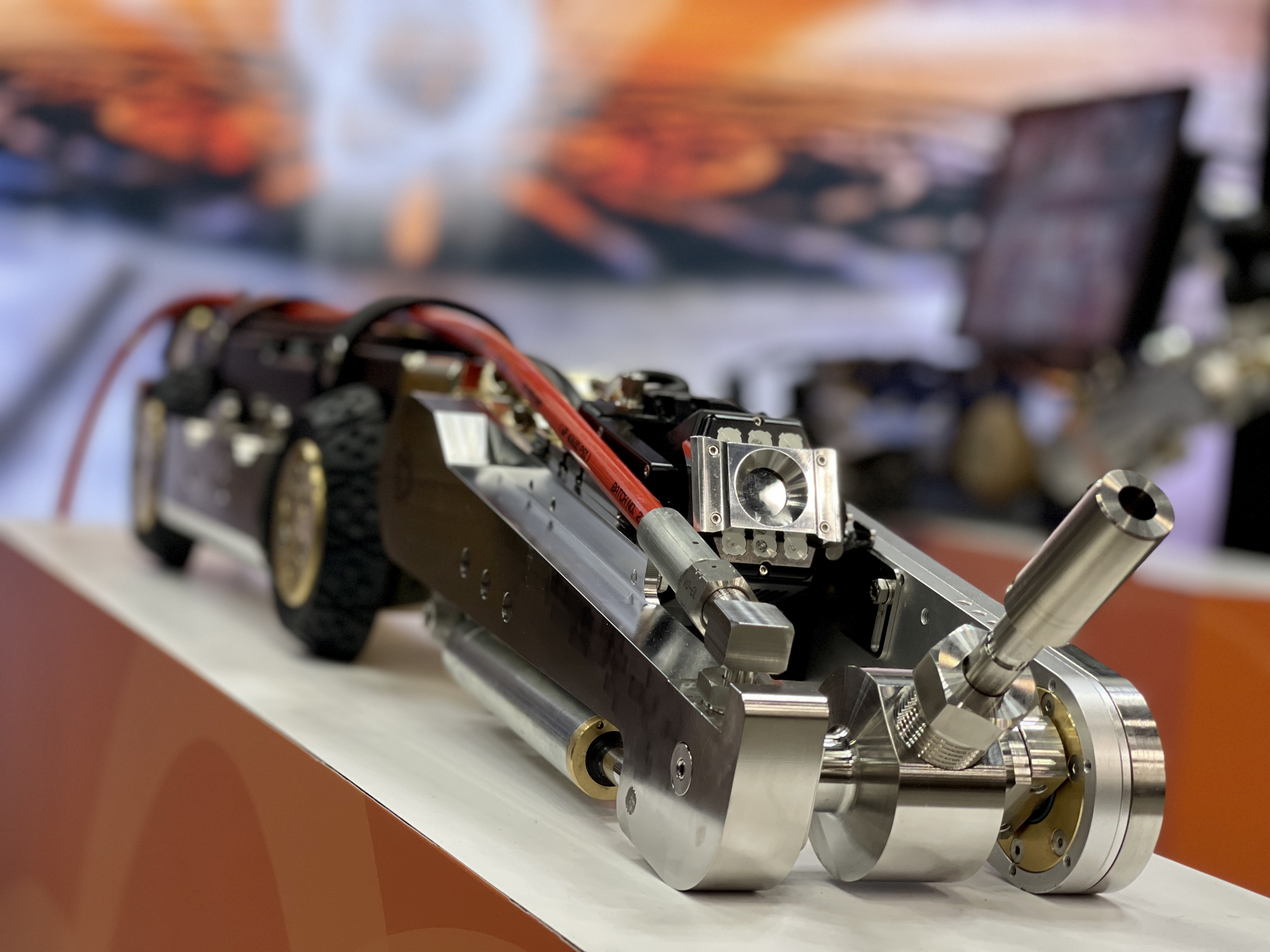

AccuPower^®

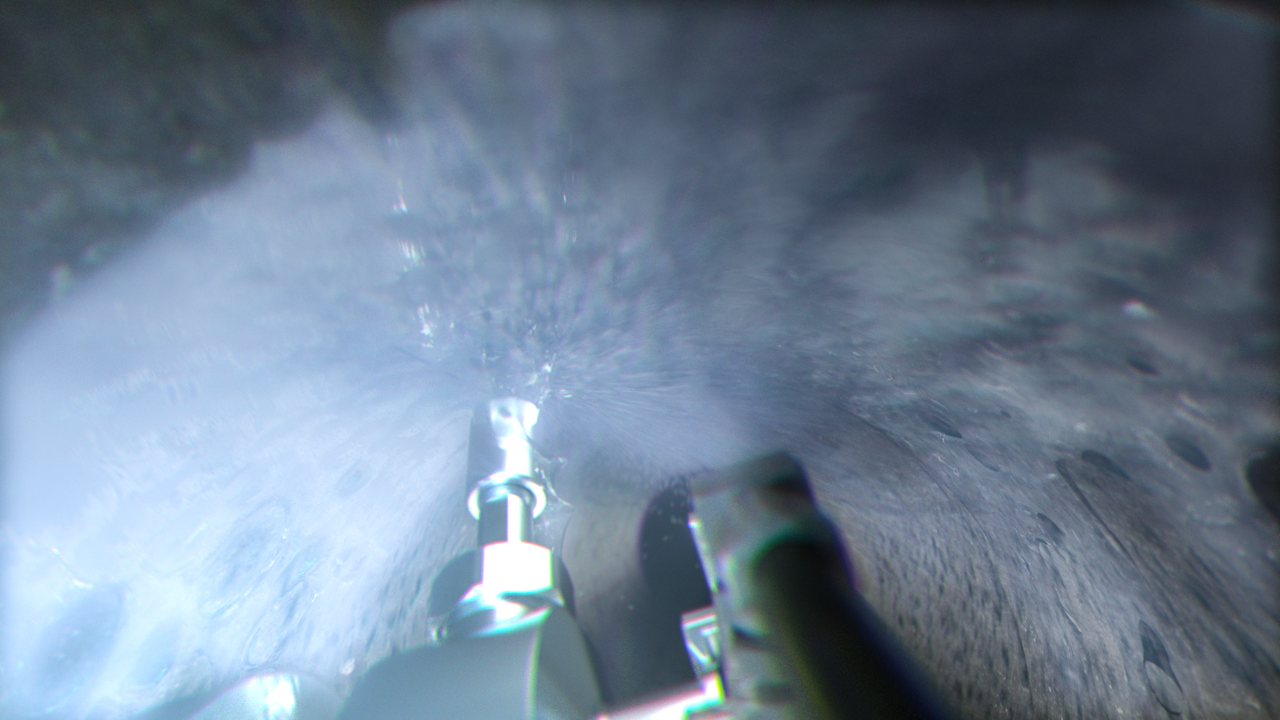

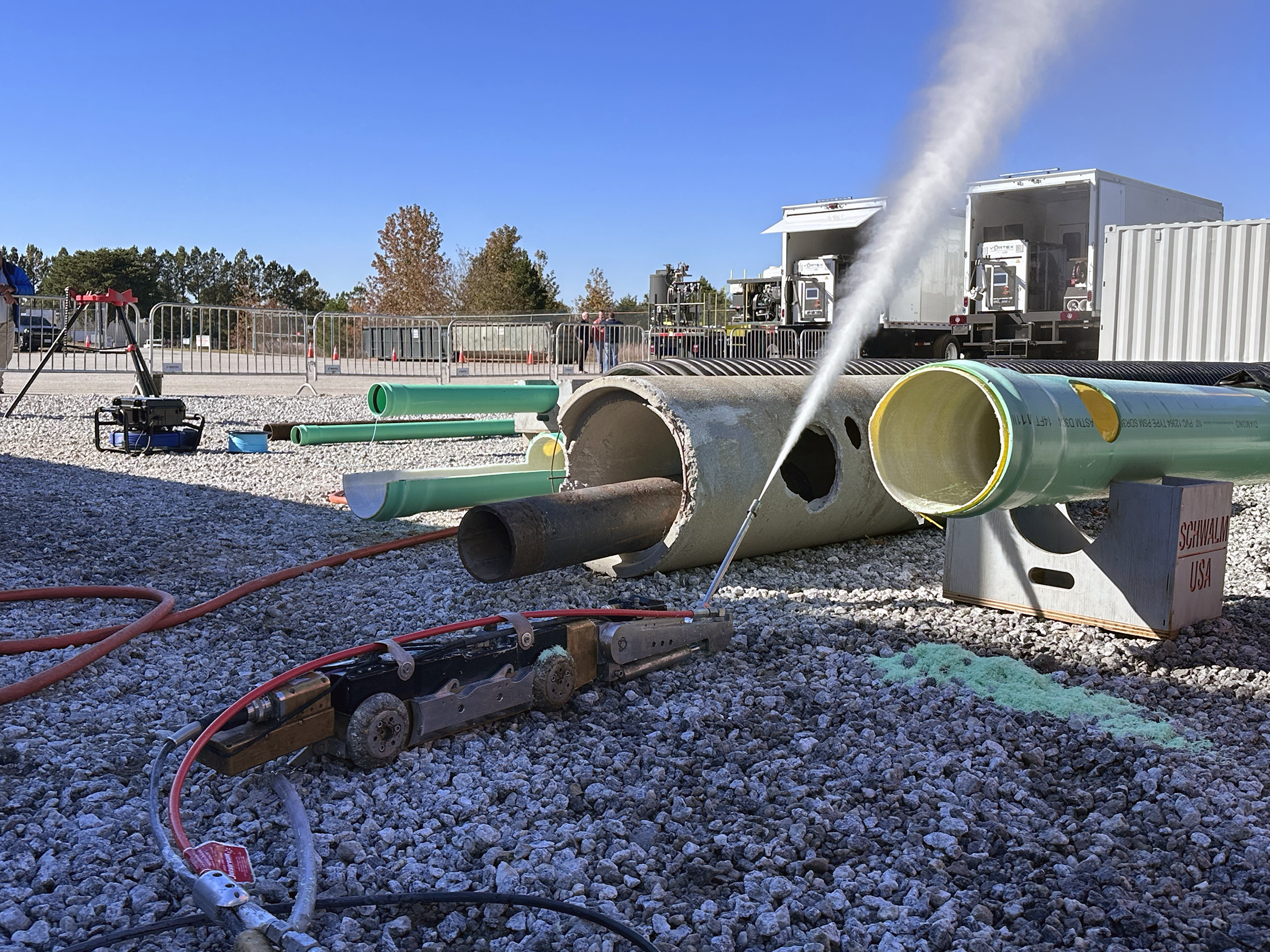

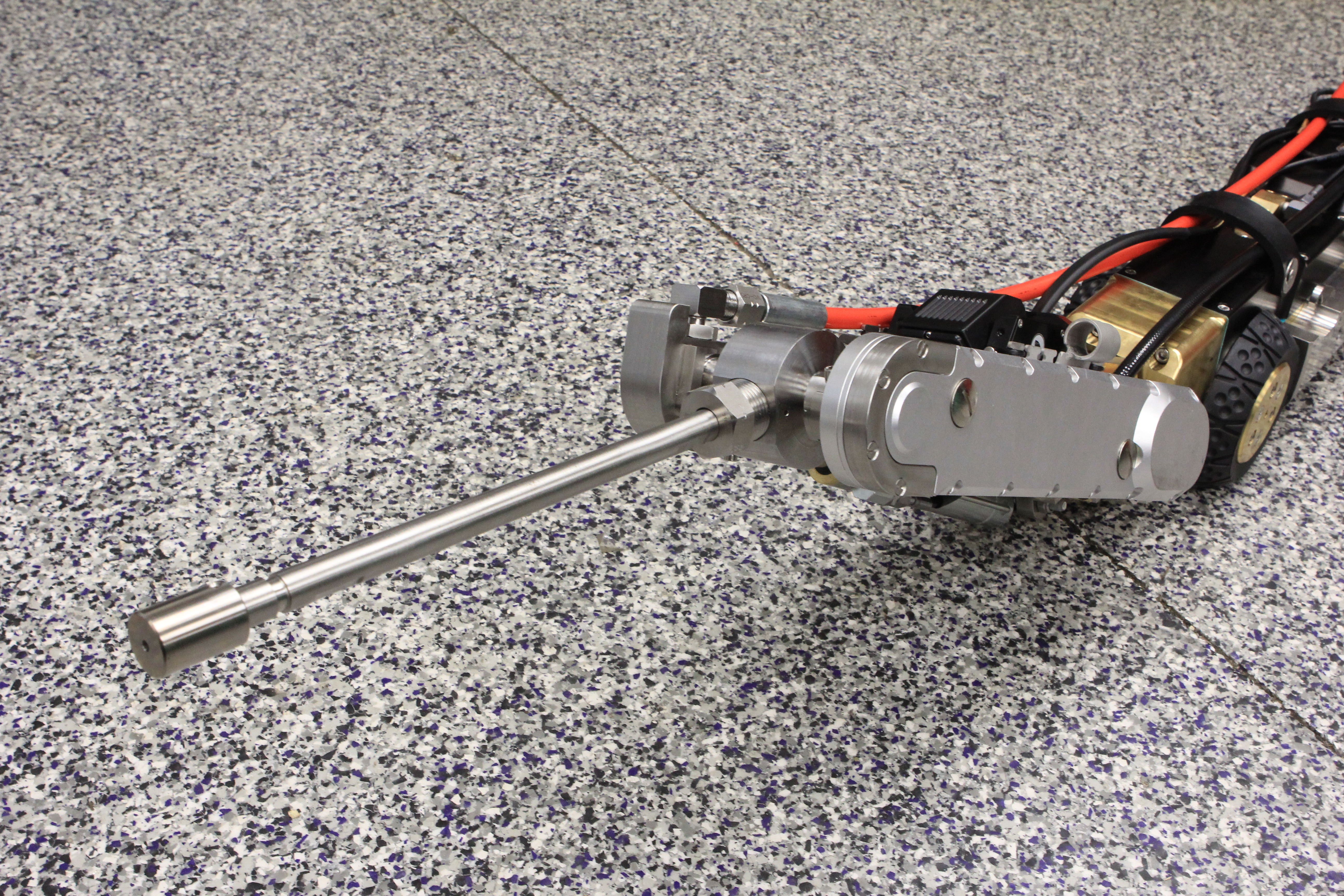

The AccuPower^® delivers up to 40K PSI | 2700 Bar of ultra-high power, water jetting performance for the most demanding pipe cleaning and cutting projects. Powered by Schwalm, AccuPower will clean, clear, and cut through obstructions with ease in pipes ranging from 8”-24” OD | DN200 – DN1200.

Available for both 1330 and 2060 Schwalm models.
